A Teosinte Rare Allele Increases Maize Plant Density and Yield

Liu Jie,Yan Jianbing()

  1. National Key Laboratory of Crop Genetic Improvement, Huazhong Agricultural University, Wuhan 430070, China
  • Received:2019-07-08 Accepted:2019-07-16 Online:2019-03-01 Published:2019-09-01
  • Contact: Yan Jianbing


Increasing plant density is an important approach to boost crop yield, and leaf angle is one of the key factors affecting plant density. Recently, Feng Tian’s lab from China Agricultural University cloned and characterized two major QTLs (UPA1 and UPA2) regulating leaf angle in maize. The underlying genes are brd1 and ZmRAVL1, respectively, and both of them are involved in the brassinosteroid (BR) pathway to regulate leaf angle. UPA2 is located 9.5 kb upstream of ZmRAVL1 and is bound by DRL1. LG1, another leaf angle protein, directly activates the expression of ZmRAVL1. DRL1 and LG1 physically interact and the resulting complex in turn represses the LG1-activated expression of ZmRAVL1. The teosinte allele of UPA2 has a higher binding affinity with DRL1, resulting in the reduced ZmRAVL1 expression, which consequently down-regulates the brd1 expression and leads to the decreased brassinosteroid level, thereby reducing the leaf angle. The introgression of UPA2 teosinte allele into maize and the manipulation of ZmRAVL1 significantly increase maize yield with increased plant density. These findings have paved a new avenue for molecular breeding of high-yield maize varieties.

Key words: maize, plant density, yield, UPA1, UPA2

Figure 1

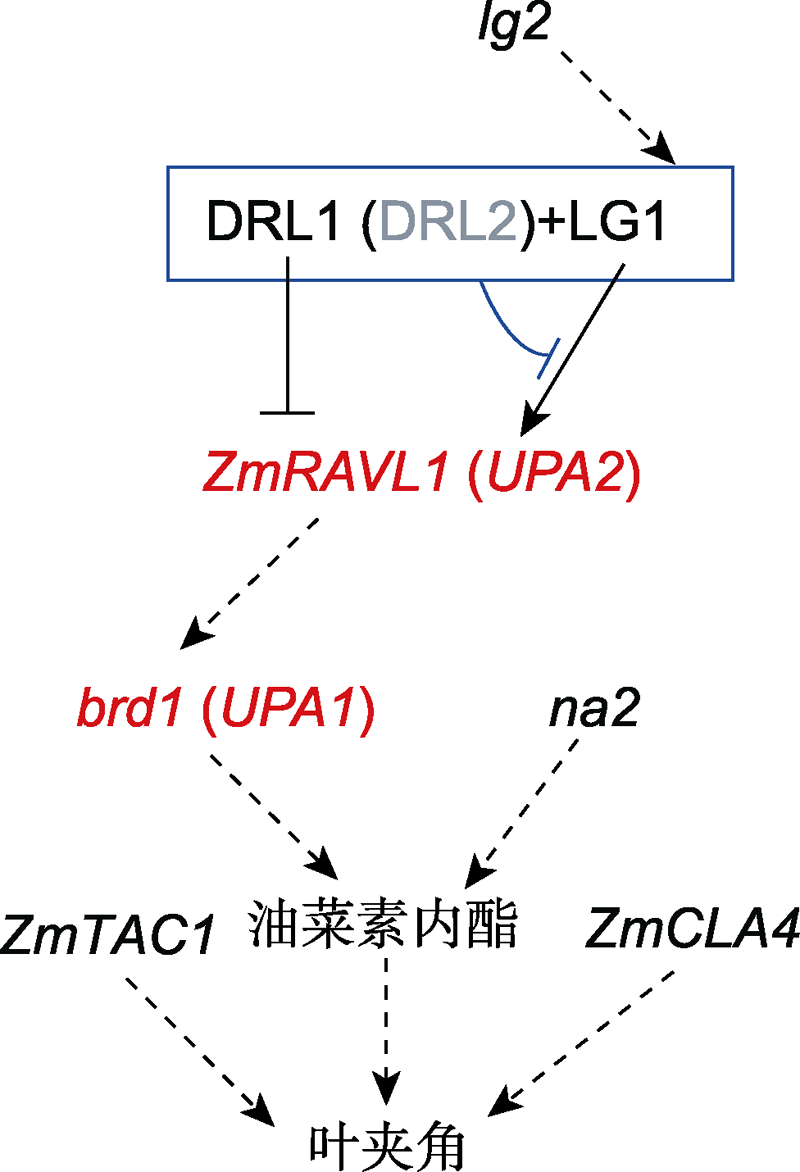

A proposed pathway regulating the leaf angle in maize lg2 regulates lg1 with an unknown mechanism. LG1 and DRL1 activates and represses the expression of ZmRAVL1, respectively. The DRL1-LG1 complex represses the LG1- activated ZmRAVL1 expression (DRL2 may have a similar function as DRL1). ZmRAVL1 regulates the expression of brd1, which, together with nana plant2 (na2), are involved in the biosynthesis of brassinosteroid (BR) and eventually regulate leaf angle. Solid and dash lines indicate the clear and unclear regulatory mechanism, respectively."

1 明博, 谢瑞芝, 侯鹏, 李璐璐, 王克如, 李少昆 (2017). 2005-2016年中国玉米种植密度变化分析. 中国农业科学 50, 1960-1972.
2 Best NB, Hartwig T, Budka J, Fujioka S, Johal G, Schulz B, Dilkes BP (2016). nana plant2 encodes a maize ortholog of the Arabidopsis brassinosteroid biosynthesis gene DWARF1, identifying developmental interactions between brassinosteroids and gibberellins. Plant Physiol 171, 2633-2647.
3 Choe S, Dilkes BP, Gregory BD, Ross AS, Yuan H, Noguchi T, Fujioka S, Takatsuto S, Tanaka A, Yoshida S, Tax FE, Feldmann KA (1999). The Arabidopsis dwarf1 mutant is defective in the conversion of 24-methylenecholesterol to campesterol in brassinosteroid biosynthesis. Plant Physiol 119, 897-907.
4 Harper L, Freeling M (1996). Interactions of liguleless1 and liguleless2 function during ligule induction in maize. Genetics 144, 1871-1882.
5 Je BI, Piao HL, Park SJ, Park SH, Kim CM, Xuan YH, Park SH, Huang J, Do Choi Y, An G, Wong HL, Fujioka S, Kim MC, Shimamoto K, Han CD (2010). RAV-Like1 maintains brassinosteroid homeostasis via the coordinated activation of BRI1 and biosynthetic genes in rice. Plant Cell 22, 1777-1791.
6 Ku L, Wei X, Zhang S, Zhang J, Guo S, Chen Y (2011). Cloning and characterization of a putative TAC1 ortholog associated with leaf angle in maize(Zea mays L.). PLoS One 6, e20621.
7 Lee EA, Tollenaar M (2007). Physiological basis of successful breeding strategies for maize grain yield. Crop Sci 47, S202-S215.
8 Li P, Wang Y, Qian Q, Fu Z, Wang M, Zeng D, Li B, Wang X, Li J (2007). LAZY1 controls rice shoot gravitropism through regulating polar auxin transport. Cell Res 17, 402-410.
9 Moreno MA, Harper LC, Krueger RW, Dellaporta SL, Freeling M (1997). liguleless1 encodes a nuclear-localized protein required for induction of ligules and auricles during maize leaf organogenesis. Genes Dev 11, 616-628.
10 Strable J, Wallace JG, Unger-Wallace E, Briggs S, Bradbury PJ, Buckler ES, Vollbrecht E (2017). Maize YABBY genes drooping leaf1 and drooping leaf2 regulate plant architecture. Plant Cell 29, 1622-1641.
11 Tian J, Wang C, Xia J, Wu L, Xu G, Wu W, Li D, Qin W, Han X, Chen Q, Jin W, Tian F (2019). Teosinte ligule allele narrows plant architecture and enhances high- density maize yields. Science 365, 658-664.
12 Walsh J, Waters CA, Freeling M (1998). The maize gene liguleless2 encodes a basic leucine zipper protein involved in the establishment of the leaf blade-sheath boundary. Genes Dev 12, 208-218.
13 Yu B, Lin Z, Li H, Li X, Li J, Wang Y, Zhang X, Zhu Z, Zhai W, Wang X, Xie D, Sun C (2007). TAC1, a major quantitative trait locus controlling tiller angle in rice. Plant J 52, 891-898.
14 Zhang J, Ku LX, Han ZP, Guo SL, Liu HJ, Zhang ZZ, Cao LR, Cui XJ, Chen YH (2014). The ZmCLA4 gene in the qLA4-1 QTL controls leaf angle in maize( Zea mays L.). J Exp Bot 65, 5063-5076.
