Chin Bull Bot ›› 2018, Vol. 53 ›› Issue (4): 502-508.doi: 10.11983/CBB17097

• EXPERIMENTAL COMMUNICATIONS • Previous Articles     Next Articles

The Effects of Different Phosphor Excitation-type LED Lighting on the Growth and Development of Arabidopsis

Zhou Zhi1,2,3, Zhang Yongli2, Wang Bianbian2, Gai Shujie1,2, Wang Ruozhong3, Lu Xiangyang3, Li Ruilian1,*()

  1. 1College of Agriculture, Hunan Agricultural University, Changsha 410128, China
    2College of Science, Hunan Agricultural University, Changsha 410128, China
    3College of Bioscience and Biotechnology, Hunan Agricultural University, Changsha 410128, China
  • Received:2017-05-16 Accepted:2017-12-26 Online:2018-09-11 Published:2018-07-01
  • Contact: Li Ruilian E-mail:2323662303@qq.com
  • About author:† These authors contributed equally to this paper

Abstract:

To investigate the effects of different red and blue bands on the growth and development of Arabidopsis, we used the model plant Arabidopsis thaliana Columbia-0 to observe the relation between light quality and plant growth. The phosphor excitation-type LED lighting affords an adjustable light spectrum by adjusting the amount of the nitride-based phosphor SrSiAlN3:Eu2+. The germination rate, root length, variation in plant height, chlorophyll content, conductivity and other parameters of the model plant under different light spectra were studied. The germination rate could reach 95.63% and the content of chlorophyll by SPAD meter was up to 26.7 with a red to blue band ratio of 2:1. Root length was much longer and could even reach 4.19 cm under a ratio of 4:5. The height showed the highest value of 15.5 cm with a red to blue band ratio of 4:1, and conductivity was as high as 40.5 S·m-1 with a ratio of 4:5. Maintaining the relative balance of red and blue light can have a positive effect on growth of Arabidopsis, and decreasing the ratio of blue light will benefit the growth of roots and accumulation of chlorophyll. Different light spectra have a great influence on the growth and deve- lopment of the model plant Arabidopsis, and the spectral adjustments can be one of the most important environmental factors for plant research.

Key words: phosphor excitation-type LED lighting, plant growth, model plant, spectral form

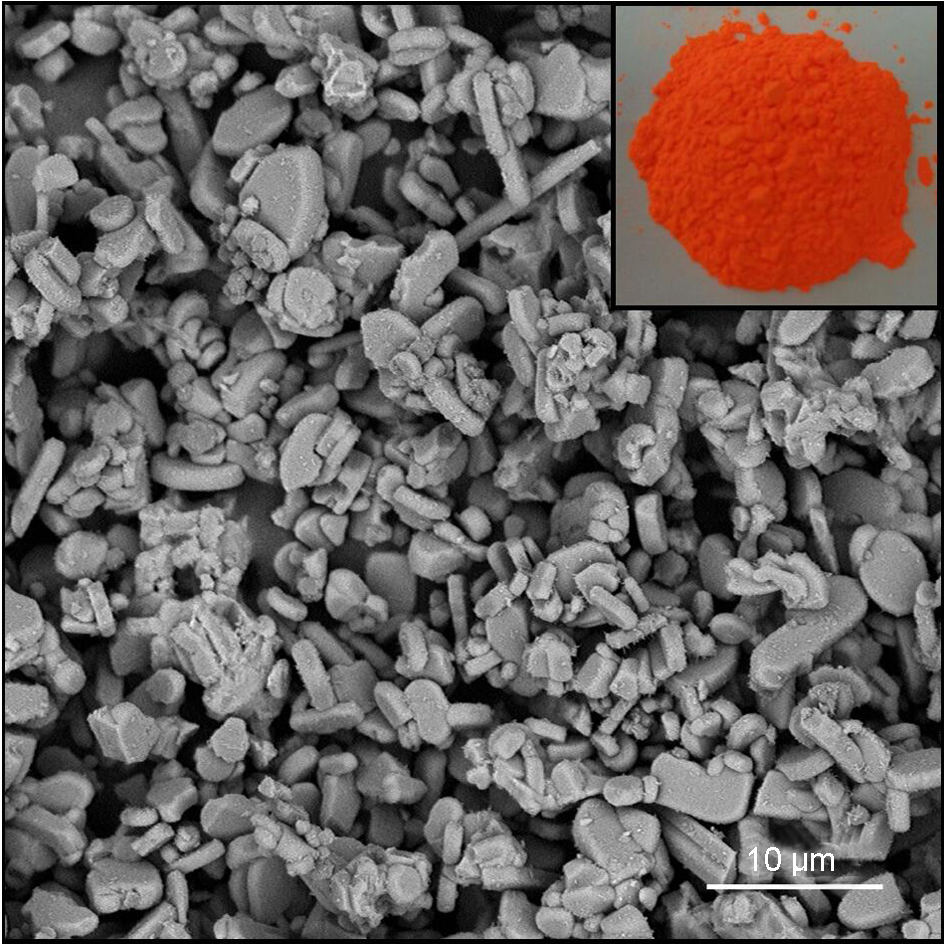

Figure 1

The scanning electron microscope (SEM) and physical photo of phosphor SrSiAlN3:Eu2+"

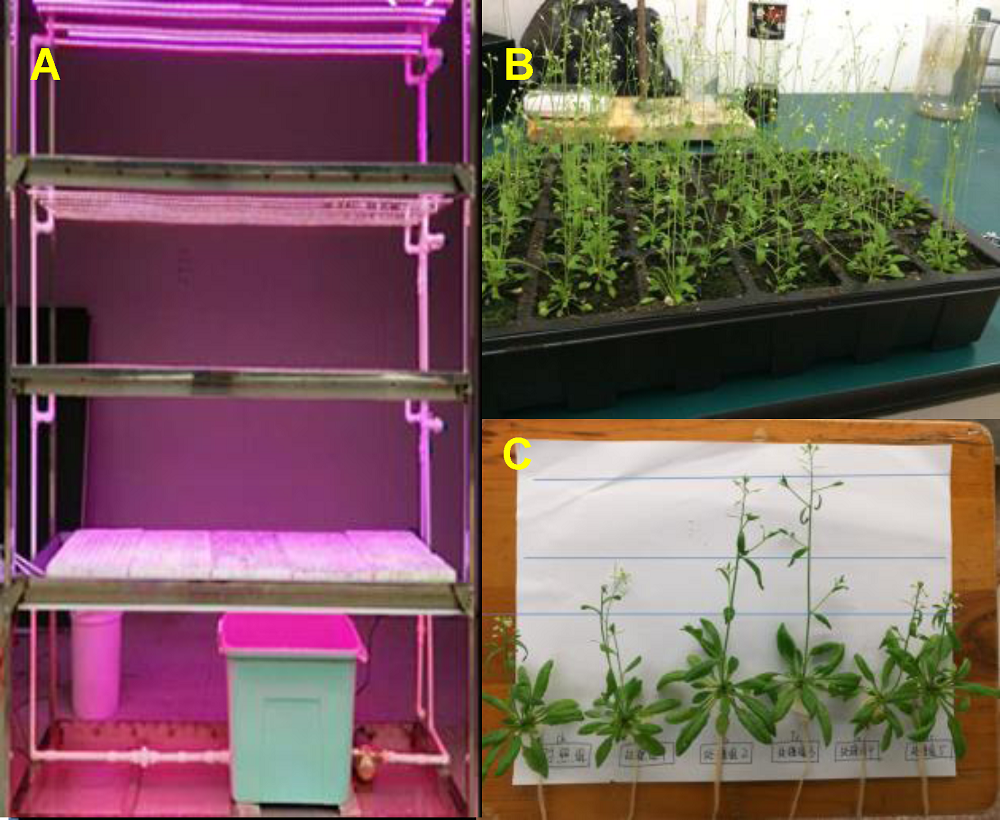

Figure 2

The diagram of experimental device (A) and the photos of whole (B) and individual (C) Arabidopsis plants under different light conditions"

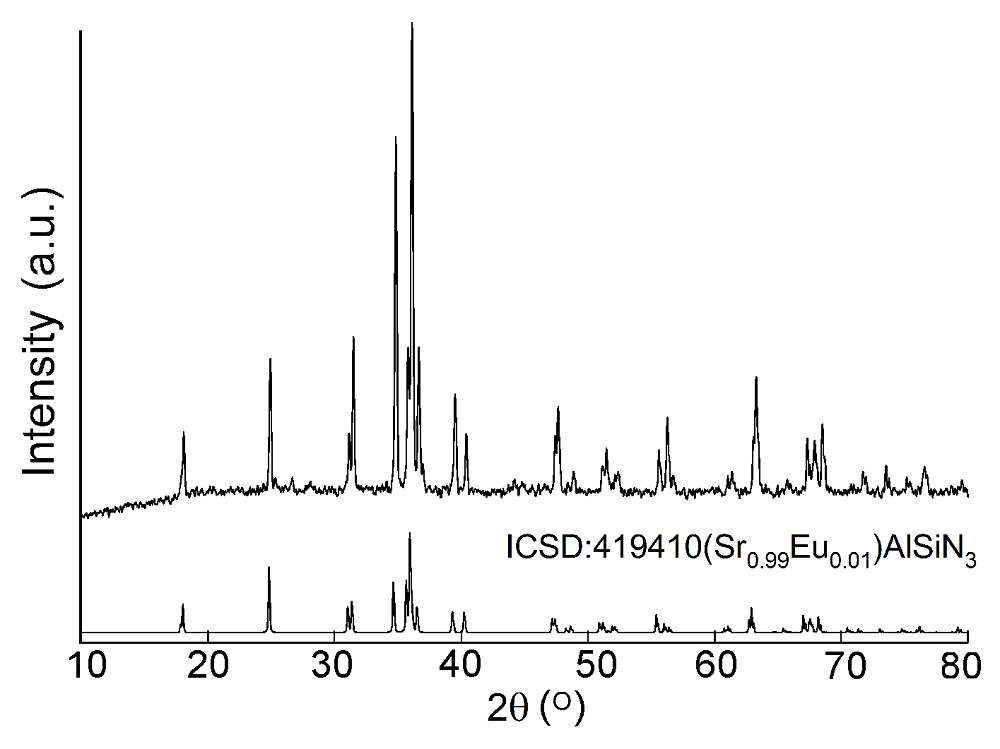

Figure 3

The XRD diffraction pattern of phosphor sample SrSiAlN3:Eu2+"

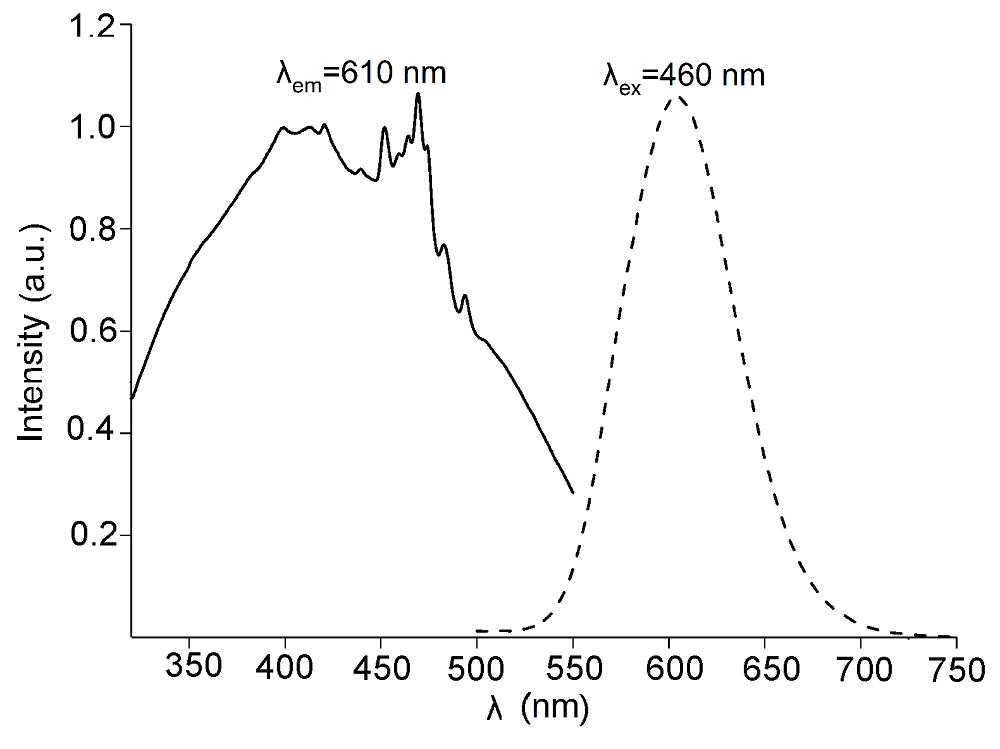

Figure 4

The PL and PLE spectrum pattern of phosphor SrSiAlN3:Eu2+"

Table 1

Effect of different light quality on the Arabidopsis seed germination rate"

Spectrum Day 3 (%) Day 4 (%) Day 5 (%) Day 6 (%) Day 7 (%) Day 8 (%)
CK (WET) 23.90 60.78 82.33 89.26 90.42 91.73
T1 (RED(610)) 25.39 65.39 89.41 90.21 90.31 92.26
T2 (R(610)4B1) 25.13 62.09 89.52 90.36 92.33 95.05
T3 (R(610)2B1) 26.67 65.52 90.74 91.74 94.25 95.63
T4 (R(610)4B5) 24.90 64.37 85.26 92.36 94.31 93.45
T5 (BLUE(460)) 23.85 62.37 80.26 89.63 91.42 90.39

Table 2

The effects of different light quality index on the growth of Arabidopsis thaliana"

Spectrum Root length (cm) Grass height (cm) Chlorophyll content (SPAD) Conductivity (S·m-1)
CK (WET) 3.27 cCD 12.32 cdC 25.19 bB 38.91 aA
T1 (RED(610)) 3.00 cD 11.34 dC 23.32 cCD 37.89 aA
T2 (R(610)4B1) 3.78 aAB 15.48 aA 26.69 aA 39.78 aA
T3 (R(610)2B1) 3.67 bBC 13.94 bB 23.88 cC 40.10 aA
T4 (R(610)4B5) 4.19 aA 12.63 cBC 22.43 dD 40.50 aA
T5 (BLUE(460)) 3.02 cD 12.22 cdC 20.32 eE 37.42 aA
1 曹刚 (2013). 不同LED光质对黄瓜和结球甘蓝苗期生长、光合特性及内源激素的影响. 博士论文. 兰州: 甘肃农业大学. pp. 18-21.
2 崔瑾, 徐志刚, 邸秀茹 (2008). LED在植物设施栽培中的应用和前景. 农业工程学报 24(8), 249-253.
3 邸秀茹, 焦学磊, 崔瑾, 刘晓英, 孔燕, 徐志刚 (2008). 新型光源LED辐射的不同光质配比光对菊花组培苗生长的影响. 植物生理学通讯 44, 661-664.
4 高振, 雷恒树, 吴雨霏, 万继花, 董飞, 王红清 (2016). 不同比例红蓝光对草莓生长和叶片光合特性的影响. 中国农业大学学报 21(12), 20-27.
5 李海达, 吉家曾, 郑桂建, 刘厚诚, 雷炳富 (2014). 不同LED补光光源对樱桃番茄产量和品质的影响. 广东农业科学 41(14), 37-40, 46.
6 刘庆, 连海峰, 刘世琦, 孙亚丽, 于新会, 郭会平 (2015). 不同光质LED光源对草莓光合特性、产量及品质的影响. 应用生态学报 26, 1743-1750.
7 刘晓东, 王若仲, 焦彬彬, 代培红, 李月 (2016). 拟南芥IAA酰胺合成酶GH3-6负调控干旱和盐胁迫的反应. 植物学报 51, 586-593.
8 刘晓英, 徐文栋, 焦学磊, 徐志刚 (2016). 不同配比红蓝LED光对黄瓜果实产量和品质的影响. 植物资源与环境学报 25, 80-84.
9 刘颖, 林娟, 周小丽, 刘木清 (2013). LED光照对拟南芥叶绿素含量和根生长发育的影响. 复旦学报(自然科学版) 52, 762-767.
10 齐连东, 刘世琦, 许莉, 于文艳, 梁庆玲, 郝树芹 (2007). 光质对菠菜草酸、单宁及硝酸盐积累效应的影响. 农业工程学报 23(4), 201-205.
11 任桂平, 王小菁, 朱根发 (2016). 不同光质的LED对蝴蝶兰组织培养增殖及生根的影响. 植物学报 51, 81-88.
12 苏娜娜, 邬奇, 崔瑾 (2014). LED单色光质对黄瓜幼苗叶片和下胚轴中内源激素含量的影响. 应用与环境生物学报 20, 45-49.
13 许莉, 刘世琦, 齐连东, 梁庆玲, 于文艳 (2007). 不同光质对叶用莴苣光合作用及叶绿素荧光的影响. 中国农学通报 23, 96-100.
14 张峰, 廖祥儒 (2008). 补充光照对植物幼苗生长的影响. 安徽农业科学 36, 3116-3117, 3202.
15 钟越峰, 陈颐, 杨虹琦, 何命军, 肖春生, 李帆, 裴晓东 (2013). 补光对烟苗生长及主要生理指标的影响. 中国农学通报 29(7), 76-81.
16 Demotes-Mainard S, Péron T, Corot A, Bertheloot J, Le Gourrierec J, Pelleschi-Travier S, Crespel L, Morel P, Huché-Thélier L, Boumaza R, Vian A, Guérin V, Leduc N, Sakr S (2016). Plant responses to red and far-red lights, applications in horticulture.Environ Exp Bot 121, 4-21.
17 Kim EH, Kim SH, Chung JI, Chi HY, Kim JA, Chung IM (2006). Analysis of phenolic compounds and isoflavones in soybean seeds (Glycine max(L.) Merill) and sprouts grown under different conditions. Eur Food Res Technol 222, 201-208.
18 Mills E, Jacobson A (2011). From carbon to light: a new framework for estimating greenhouse gas emissions reductions from replacing fuel-based lighting with LED systems.Energy Effic 4, 523-546.
19 Naoya F, Mitsuko KY, Masami U, Kenji T, Sadanori S (2002). Effects of light quality, intensity and duration from different artificial light sources on the growth of petunia (Petunia × hybrida Vilm.). J Jpn Soc Horticalt Sci 71, 509-516.
