基于LA-ICP-MS的文旦柚果实养分原位可视化与半定量分析新方法

doi:10.11983/CBB25113

植物学报 ›› 2026, Vol. 61 ›› Issue (5): 859-870.DOI: 10.11983/CBB25113

基于LA-ICP-MS的文旦柚果实养分原位可视化与半定量分析新方法

王寒雪, 陈昊, 洪佳伟, 陈玥勤, 廖红^*

福建农林大学资源与环境学院, 根系生物学研究中心, 福州 350002

收稿日期:2025-06-19 接受日期:2025-10-11 发布日期:2025-10-22
通讯作者: *廖红, 福建农林大学教授、根系生物学研究中心主任、博士生导师。农业农村部农业科研杰出人才, 国家杰出青年科学基金获得者; 入选国家“百千万人才工程”、国家高层次人才特殊支持计划领军人才、第五批福建省“百人计划”(创新人才)和第三批福建省特支“双百计划”科技创新人才。主持“十三五”、“十四五”国家重点研发计划项目等。主要从事植物营养学、作物养分高效遗传改良和酸性土壤等研究。同时创建了茶树优质高效生态栽培模式, 并入选2021年农业农村部十项绿色发展技术, 在解决科学问题的同时, 促进解决农业农村绿色发展问题。E-mail: hliao@fafu.edu.cn
基金资助:
福建农林大学科技创新专项基金(No.105-KFB24130A)

Visualization and Semi-quantitative Analysis of in-situ Distribution of Nutrients in Wendan Pomelo Fruit Based on LA-ICP-MS

Wang Hanxue, Chen Hao, Hong Jiawei, Chen Yueqin, Liao Hong^*

Root Biology Center, College of Resources and Environment, Fujian Agriculture and Forestry University, Fuzhou 350002, China

Received:2025-06-19 Accepted:2025-10-11 Published:2025-10-22
Contact: *E-mail: hliao@fafu.edu.cn

摘要/Abstract

摘要： 原位可视化果实养分浓度, 有助于解析果实养分分配及需求规律, 为果树科学合理施肥提供理论依据。该研究建立了一种基于激光剥蚀-电感耦合等离子体质谱(LA-ICP-MS)原位可视化文旦柚(Citrus maxima)果实养分浓度的新方法。使用石蜡切片法进行前期处理, 避免由于果实柔软多汁等导致组织破损; 使用飞秒激光器, 以研究对象的空间分辨率为主, 通过不同组织离子强度展示各养分的具体分布, 且使用外标法进行基体校正并提供柑橘属中养分元素的相对含量, 原位半定量并可视化分析了文旦柚果实不同部位不同组织的养分浓度。结果表明, 文旦柚果实中, 钾、氮、钙、镁和磷浓度较高, 主要集中于黄皮层的角质层、白皮层的维管束类组织及汁胞的表皮组织。其中, 钙元素相对浓度在黄皮层上最高可达2 302.76 mg∙L^-1, 在整个黄皮层组织平均达到(516.21±28.96) mg∙L^-1, 锌元素相对浓度在黄皮层上最高达到1 388.12 mg∙L^-1, 在整个黄皮层组织平均为(410.22±16.43) mg∙L^-1; 二者同样在表皮细胞中相对浓度最高, 暗示钙元素和锌元素在文旦柚果实中具有重要的营养价值。

关键词: 原位可视化, 激光剥蚀-电感耦合等离子体质谱法, 半定量方法, 养分分布

Abstract: INTRODUCTION: The distribution and concentration of nutrient elements within fruits directly influence their yield and quality. Conventional analytical methods primarily rely on digestion to quantify nutrient content in different fruit tissues. However, as fruits comprise multiple tissue structures, basic quantification techniques fail to precisely resolve nutrient distribution across these microstructural compartments. Consequently, establishing an in-situ method enabling visualization of spatial nutrient concentration profiles in fruit tissues is imperative.
RATIONALE: Laser Ablation Inductively Coupled Plasma Mass Spectrometry (LA-ICP-MS), as an advanced micro-analytical technique, enables effective visualization of in situ elemental distribution within plant tissues. LA-ICP-MS uses a femtosecond laser (wave-length 343 nm) to scan the fruit sample and the standard sample according to the line of the laser beam during the measurement of the femtosecond laser (wave-length 343 nm). The burned sample material is sent to the ICP with the carrier gas Ar, and the ionic strength of P³¹, K³⁹, Ca⁴⁴, Mg²⁴, Fe⁵⁷, Mn⁵⁵, Cu⁶³, Zn⁶⁶, S³⁴, Al²⁷, Cr⁵², Mo⁹⁵, Pb²⁰⁸, Sr⁸⁸ and Rb⁸⁵ in different parts of the fruit is detected. Visualize the nutrient distribution between different tissues.

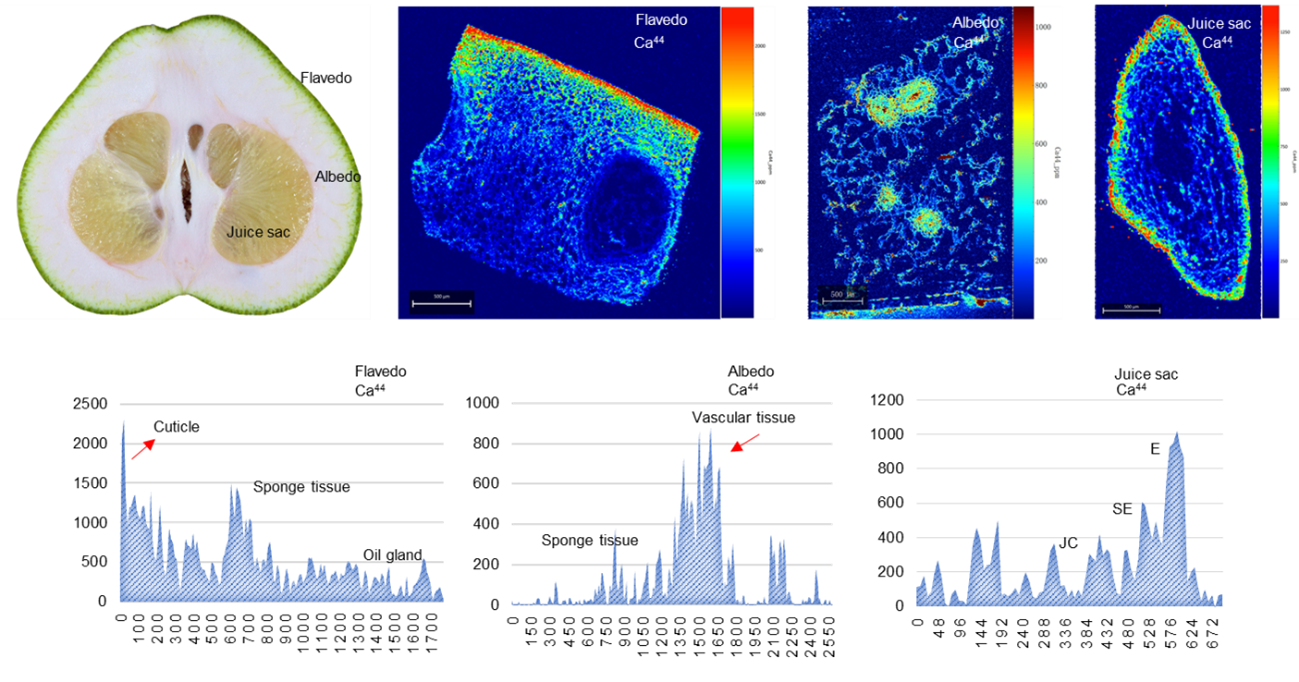

RESULTS: Through LA-ICP-MS analysis, we performed in situ, spatially-resolved and semi-quantitative analysis of nutritional element distributions across distinct tissue structures in pomelo fruit during maturation. Significant tissue-specific heterogeneity was observed in elemental distributions among fruit compartments. Three structures demonstrated consistent nutrient enrichment: cuticle of flavedo, vascular bundle-like structures in albedo, and epidermal cells of juice sacs. The concentrations of potassium, nitrogen, calcium, magnesium and phosphorus were higher in the fruit of Wendan pomelo, which were mainly concentrated in the cuticle of flavedo, vascular bundle tissue of albedo and epidermal tissue of juice sac. Among them, the relative average concentration of calcium in the flavedo was as high as (516.21±28.96) mg·L^-1, and the relative average concentration of zinc in the cuticle of the flavedo was (410.22±16.43) mg·L^-1. The relative concentration of the two in the epidermal cells of the juice sac was the highest, suggesting that calcium and zinc play an important nutritional role in the fruit of Wendan pomelo.
CONCLUSION: This study established a novel LA-ICP-MS methodology for in-situ, visual and semi-quantitative analysis for nutrient distribution in different tissue structures of fruits, which was used to establish the spatial relationship of nutrient distribution, filling the gap in the visualization of fruit nutrient distribution. The relative concentration of different elements in each tissue was analyzed, which provided scientific theory for the subsequent guidance of Wendan pomelo farming measures.

Key words: In-situ visualization, laser ablation-inductively coupled plasma mass spectrometry, semi-quantitative method, nutrient distribution

王寒雪, 陈昊, 洪佳伟, 陈玥勤, 廖红. 基于LA-ICP-MS的文旦柚果实养分原位可视化与半定量分析新方法. 植物学报, 2026, 61(5): 859-870.

Wang Hanxue, Chen Hao, Hong Jiawei, Chen Yueqin, Liao Hong. Visualization and Semi-quantitative Analysis of in-situ Distribution of Nutrients in Wendan Pomelo Fruit Based on LA-ICP-MS. Chinese Bulletin of Botany, 2026, 61(5): 859-870.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.chinbullbotany.com/CN/10.11983/CBB25113

https://www.chinbullbotany.com/CN/Y2026/V61/I5/859

参考文献

[1] Becker JS, Matusch A, Wu B (2014). Bioimaging mass spectrometry of trace elements—recent advance and applications of LA-ICP-MS: a review.Anal Chim Acta 835, 1-18.
[2] Becker JS, Zoriy M, Dressler VL, Wu B, Becker JS (2008). Imaging of metals and metal-containing species in biological tissues and on gels by laser ablation inductively coupled plasma mass spectrometry (LA-ICP-MS): a new analytical strategy for applications in life sciences.Pure Appl Chem 80, 2643-2655.
[3] Becker JS, Zoriy M, Matusch A, Wu B, Salber D, Palm C, Becker JS (2010). Bioimaging of metals by laser ablation inductively coupled plasma mass spectrometry (LA-ICP- MS).Mass Spectrom Rev 29, 156-175.
[4] Cao S, Zeng B, Zhou X, Deng SF, Zhang W, Luo SN, Ouyang MY, Yang SZ (2024). Multivariate analysis and optimization scheme of the relationship between leaf nutrients and fruit quality in ‘Bingtang’ sweet orange orchards.Horticulturae 10, 976.
[5] Che J, Yamaji N, Wang SF, Xia Y, Yang SY, Su YH, Shen RF, Ma JF (2024). OsHAK4 functions in retrieving sodium from the phloem at the reproductive stage of rice.Plant J 120, 76-90.
[6] Chen YF, Wang Y, Wu WH (2025). Progress of potassium and phosphorus transport and signaling in plants.Chin Sci Bull 70, 4259-4271. (in Chinese)
陈益芳, 王毅, 武维华 (2025). 植物钾、磷养分吸收利用机制的研究进展. 科学通报 70, 4259-4271.
[7] Cui ZW, He M, Chen BB, Hu B (2023). In-situ elemental quantitative imaging in plant leaves by LA-ICP-MS with matrix-matching external calibration. Anal Chim Acta 1275, 341588.
[8] Ding N, Jiang YM, Peng FT, Wei SC, Chen R, Chen Q (2012). Studies on leaf senescence and ¹⁵N-urea absorption and utilization of ‘Fuji’ apple in response to topdressing nitrogen application.Plant Nutr Fert Sci 18, 758-764. (in Chinese)
丁宁, 姜远茂, 彭福田, 魏绍冲, 陈汝, 陈倩 (2012). 分次追施氮肥对红富士苹果叶片衰老及¹⁵N吸收、利用的影响. 植物营养与肥料学报 18, 758-764.
[9] Ding N, Peng L, An X, Chen Q, Jiang H, Jiang YM (2016). Absorption, distribution and utilization of dwarf apple trees to ¹⁵N applied in different growth stages.J Plant Nutr Fert 22, 572-578. (in Chinese)
丁宁, 彭玲, 安欣, 陈倩, 姜翰, 姜远茂 (2016). 不同时期施氮矮化苹果对¹⁵N的吸收、分配及利用. 植物营养与肥料学报 22, 572-578.
[10] Diniz AP, Kozovits AR, Lana CDC, Abreu ATD, Leite MGP (2019). Quantitative analysis of plant leaf elements using the LA-ICP-MS technique.Int J Mass Spectrom 435, 251-258.
[11] Gaiss S, Amarasiriwardena D, Alexander D, Wu FC (2019). Tissue level distribution of toxic and essential elements during the germination stage of corn seeds (Zea mays L.) using LA-ICP-MS. Environ Pollut 252, 657-665.
[12] Gupta N, Ram H, Kumar B (2016). Mechanism of zinc absorption in plants: uptake, transport, translocation and accumulation.Rev Environ Sci Biotechnol 15, 89-109.
[13] Hanć A, Barałkiewicz D, Piechalak A, Tomaszewska B, Wagner B, Bulska E (2009). An analysis of long-distance root to leaf transport of lead inPisum sativum plants by laser ablation-ICP-MS. Int J Environ Anal Chem 89, 651-659.
[14] Hao YS, Jiang CC, Xia Y, Wang XL, Chen F, Lu JW (2011). A review on the mechanism of potassium uptake and regulation in plants.Chin Agric Sci Bull 27, 6-10. (in Chinese)
郝艳淑, 姜存仓, 夏颖, 王晓丽, 陈防, 鲁剑巍 (2011). 植物钾的吸收及其调控机制研究进展. 中国农学通报 27, 6-10.
[15] Hennekam R, Jilbert T, Mason PRD, De Lange GJ, Reichart GJ (2015). High-resolution line-scan analysis of resin-embedded sediments using laser ablation-inductively coupled plasma-mass spectrometry (LA-ICP-MS).Chem Geol 403, 42-51.
[16] Hrdlička A, Hegrová J, Bucková M, Prochazka D, Holá M, Novotný K, Pořízka P, Kanický V, Kaiser J (2022). Feasibility of direct analysis of algae contamination with chromium and copper on the filter with laser-induced breakdown spectroscopy and laser ablation inductively coupled plasma mass spectrometry.Spectrochim Acta Part B: Atom Spectrosc 195, 106488.
[17] Jentzsch M, Albiez V, Kardamakis TC, Speck T (2024). Analysis of the peel structure of differentCitrus spp. via light microscopy, SEM and μCT with manual and automatic segmentation. Soft Matt 20, 2804-2811.
[18] Khan MIR, Nazir F, Maheshwari C, Chopra P, Chhillar H, Sreenivasulu N (2023). Mineral nutrients in plants under changing environments: a road to future food and nutrition security.Plant Genome 16, e20362.
[19] Kukusamude C, Kongsri S, Tamklang R, Taebunpakul S (2024). Feasibility of matrix-matched material for determining elements in rice flour by SN-ICP-MS and LA- ICP-MS.Foods 13, 1604.
[20] Lai CH, Hu YC, Li PJ, Xu YJ, Wang HM, Wang HX, Liao H (2024). Nutrient allocation regulation in pomelo fruits and its relationship with the quality of juice sac.South China Fruits 53(3), 66-72. (in Chinese)
赖长鸿, 胡逸宸, 李培杰, 许艺嘉, 王浩民, 王寒雪, 廖红 (2024). 蜜柚果实养分分配规律及与汁胞品质的关系. 中国南方果树 53(3), 66-72.
[21] Limbeck A, Galler P, Bonta M, Bauer G, Nischkauer W, Vanhaecke F (2015). Recent advances in quantitative LA-ICP-MS analysis: challenges and solutions in the life sciences and environmental chemistry.Anal Bioanal Chem 407, 6593-6617.
[22] Liu XM, Liu XD, Liu WD, Tan QL, Hu CX, Li JX (2021). Nutritional status of different citrus trees and the recommended dosages of N, P and K for citrus production in China.J Plant Nutr Fert 27, 565-574. (in Chinese)
刘小曼, 刘晓东, 刘伟栋, 谭启玲, 胡承孝, 李进学 (2021). 我国不同种类柑橘养分状况及氮磷钾推荐用量研究. 植物营养与肥料学报 27, 565-574.
[23] Long JM, Guo WW (2018). Paraffin embedding citrus tissues and sectioning. Bio-101 e1010196. Doi: 10.21769/ BioProtoc.1010196. (in Chinese)
龙健梅, 郭文武 (2018). 柑橘石蜡切片. Bio-101 e1010196. Doi: 10.21769/BioProtoc.1010196.
[24] Lu JL (2020). Chemical Constituents of Pomelo Peel from 10 Households in China and Biological Activity Study. Master’s thesis. Beijing: Minzu University of China. pp. 1-145. (in Chinese)
卢锦澜 (2020). 中国10产地文旦柚果皮化学成分及生物活性研究. 硕士论文. 北京: 中央民族大学. pp. 1-145.
[25] Lufu R, Ambaw A, Opara UL (2021). Functional characterisation of lenticels, micro-cracks, wax patterns, peel tissue fractions and water loss of pomegranate fruit (cv. Wonderful) during storage.Postharvest Biol Technol 178, 111539.
[26] Macnee NC, Rebstock R, Hallett IC, Schaffer RJ, Bulley SM (2020). A review of current knowledge about the formation of native peridermal exocarp in fruit.Funct Plant Biol 47, 1019-1031.
[27] Papaslioti EM, Parviainen A, Alpiste RMJ, Marchesi C, Garrido CJ (2019). Quantification of potentially toxic elements in food material by laser ablation-inductively coupled plasma-mass spectrometry (LA-ICP-MS)via pressed pellets. Food Chem 274, 726-732.
[28] Rahman NFA, Shamsudin R, Ismail A, Shah NNAK, Varith J (2018). Effects of drying methods on total phenolic contents and antioxidant capacity of the pomelo (Citrus grandis(L.) Osbeck) peels. Innovat Food Sci Emerg Technol 50, 217-225.
[29] Shelden MC, Gilbert SE, Tyerman SD (2020). a laser ablation technique maps differences in elemental composition in roots of two barley cultivars subjected to salinity stress.Plant J 101, 1462-1473.
[30] Shomer I (1988). Protein self-encapsulation: a mechanism involved with colloidal flocculation in citrus fruit extracts.J Sci Food Agric 42, 55-66.
[31] Sussulini A, Becker JS, Becker JS (2017). Laser ablation ICP-MS: application in biomedical research.Mass Spec Rev 36, 47-57.
[32] Thyssen GM, Holtkamp M, Kaulfürst-Soboll H, Wehe CA, Sperling M, Von Schaewen A, Karst U (2017). Elemental bioimaging by means of LA-ICP-OES: investigation of the calcium, sodium and potassium distribution in tobacco plant stems and leaf petioles.Metallomics 9, 676-684.
[33] Uchida R (2000). Essential nutrients for plant growth: nutrient functions and deficiency symptoms. In: Silva JA, Uchida R, eds. Plant Nutrient Management in Hawaii’s Soils, Approaches for Tropical and Subtropical Agriculture. Honolulu: College of Tropical Agriculture and Human Resources, University of Hawaii at Manoa. pp. 31-55.
[34] Wang Y, Liu Q, Shao Z, Wang XS, Chen YF, Bai JJ, Chen ML, Wang JH (2025). Investigation on effects of TiO₂ on cucumber seedlings using ICP-OES and LA-ICP-MS.Anal Chim Acta 1352, 343917.
[35] Wang Y, Wu WH (2009). Molecular genetic mechanism of high efficient potassium uptake in plants.Chin Bull Bot 44, 27-36. (in Chinese with English abstract)
王毅, 武维华 (2009). 植物钾营养高效分子遗传机制. 植物学报 44, 27-36.
[36] Wang YA (2007). Studies on the Transportation and Distribution of Zinc in Apple Trees and the Effect of Zinc Deficiency on its Physiological Characteristics. PhD dissertation. Tai’an: Shandong Agricultural University. pp. 1-161. (in Chinese)
王衍安 (2007). 苹果树锌运转分配及缺锌对其生理特性影响的研究. 博士论文. 泰安: 山东农业大学. pp. 1-161.
[37] Wu B, Zoriy M, Chen Y, Becker JS (2009). Imaging of nutrient elements in the leaves ofElsholtzia splendens by laser ablation inductively coupled plasma mass spectrometry (LA-ICP-MS). Talanta 78, 132-137.
[38] Xu H, Wang YW, Luo ZW, Hu WL, Liao WQ, Chen LS, Li Y, Guo JX (2024). Optimized nutrients management improved citrus yield and fruit quality in China: a meta-analysis.Chin J Appl Ecol 35, 1301-1311. (in Chinese)
徐浩, 王玉雯, 罗自威, 胡文朗, 廖文强, 陈立松, 李延, 郭九信 (2024). 养分优化管理提高我国柑橘产量和品质的整合分析. 应用生态学报 35, 1301-1311.
[39] Xu SW, Xu R, Sun YX, Xu WM, Xu CF, Wang T (2016). Analysis of trace elements content in chrysanthemum teas and their dissolution characteristics by inductively coupled plasma-mass spectrometry.J Food Saf Qual 7, 4946-4954. (in Chinese)
徐世伟, 徐蓉, 孙雨茜, 徐为民, 徐寸发, 王同 (2016). 电感耦合等离子体质谱法分析菊花茶中微量元素含量及其溶出特性. 食品安全质量检测学报 7, 4946-4954.
[40] Yamaji N, Ma JF (2019). Bioimaging of multiple elements by high-resolution LA-ICP-MS reveals altered distribution of mineral elements in the nodes of rice mutants.Plant J 99, 1254-1263.
[41] Yan XL, Liao H, Ge ZY, Luo XW (2000). Root architectural characteristics and phosphorus acquisition efficiency in plants.Chin Bull Bot 17, 511-519. (in Chinese with English abstract)
严小龙, 廖红, 戈振扬, 罗锡文 (2000). 植物根构型特性与磷吸收效率. 植物学通报 17, 511-519.
[42] Yang HX, Zhao LH, Gao JX, Liu W, Li B (2014). Bioimaging and distribution of Cd, P, S, K, Ca, Cu and Zn elements in Indian mustard stem.Chin J Anal Chem 42, 355-359.
[43] Ye S, Wang DF, Ding LZ, Cheng YX (2000). Research advances on chemical forms of calcium in plant.J Anhui Agric Univ 27, 417-421. (in Chinese)
叶盛, 汪东风, 丁凌志, 程玉祥 (2000). 植物体内钙的存在形式研究进展(综述). 安徽农业大学学报 27, 417-421.
[44] Yin JJ, Hu XD, Hou YL, Liu ST, Jia SG, Gan CF, Ou YL, Zhang XH (2023). Comparative analysis of chemical compositions and antioxidant activities of different pomelo varieties from China.Food Chem Adv 2, 100180.
[45] Zhang HO, Xia LF, Xu Y (2021). LA-ICP-MS method for analyzing element distribution in plants.Bot Res 10, 507-511.
张海欧, 夏龙飞, 徐艳 (2021). 浅析激光剥蚀-电感耦合等离子体质谱分析植物体内元素分布的方法. 植物学研究 10, 507-511.
[46] Zhang XY, Geng LP, Gao PP, Dong JW, Zhou C, Li HB, Chen MM, Xue PY, Liu WJ (2022). Bioimaging of Pb by LA-ICP-MS and Pb isotopic compositions reveal distributions and origins of Pb in wheat grain.Sci Total Environ 802, 149729.
[47] Zhao WZ, Zhang TH, Zhang Y, Yang Y, Lu B (2023). A pretreatment process for determination of multiple elements in plant samples based on ICP-OES.Geol Resour 32, 505-511, 516. (in Chinese)
赵文志, 张填昊, 张元, 杨园, 卢兵 (2023). 基于电感耦合等离子体发射光谱法测定植物样品中多元素的前处理方法研究. 地质与资源 32, 505-511, 516.
[48] Zhu YB, Gonzalez JJ, Yang XY, Chan CGY, He X, Kostecki R, Mao XL, Russo RE, Zorba V (2020). Calcium fluoride as a dominating matrix for quantitative analysis by laser ablation-inductively coupled plasma-mass spectrometry (LA-ICP-MS): a feasibility study.Anal Chim Acta 1129, 24-30.
