植物学报 ›› 2016, Vol. 51 ›› Issue (4): 565-574.DOI: 10.11983/CBB15137
• 专题论坛 • 上一篇
收稿日期:
2015-08-03
接受日期:
2015-10-13
出版日期:
2016-07-01
发布日期:
2016-08-05
通讯作者:
袁政
作者简介:
# 共同第一作者
基金资助:
Yanjie Yu, Dabing Zhang, Zheng Yuan*
Received:
2015-08-03
Accepted:
2015-10-13
Online:
2016-07-01
Published:
2016-08-05
Contact:
Yuan Zheng
About author:
# Co-first authors
摘要: WOX蛋白家族是植物特有的一类转录因子家族, 是植物胚胎建成、干细胞维持和器官发生等发育过程中的重要调控因子。越来越多的研究表明, 作为干细胞维持的关键因子之一, WOX蛋白家族通过相似或特异的调控网络参与植物初生分生组织(茎尖和根尖分生组织)和次生分生组织(维管分生组织)等各级干细胞的维持和分化。该文综述了近年来WOX蛋白家族调控干细胞发育分子机制的研究进展, 并对其在单、双子叶植物中功能的保守性进行了比较和分析。
于燕杰, 张大兵, 袁政. WOX蛋白家族调控干细胞发育分子机制的研究进展. 植物学报, 2016, 51(4): 565-574.
Yanjie Yu, Dabing Zhang, Zheng Yuan. The Updated Functional Study of WOX Protein Family in Regulating Stem Cell Development. Chinese Bulletin of Botany, 2016, 51(4): 565-574.

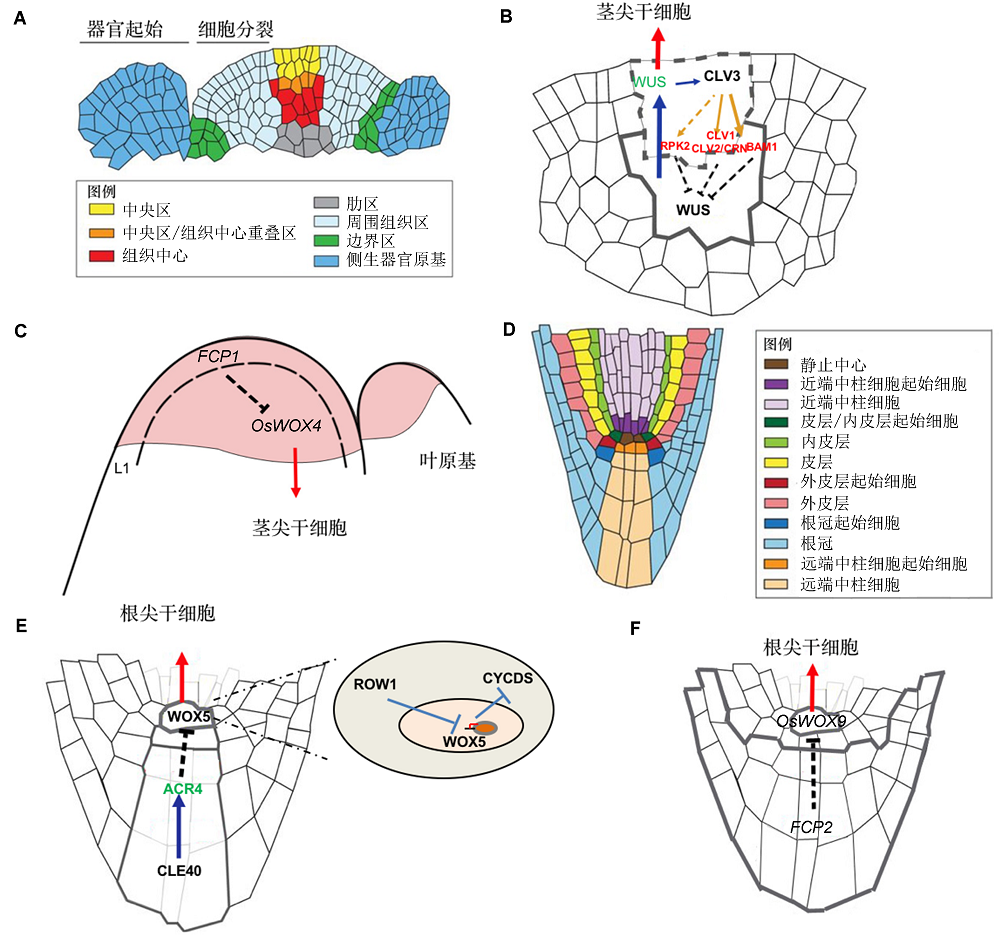

图1 WOX家族基因参与调控拟南芥和水稻茎尖及根尖分生组织发育的分子网络示意图(改自Gaillochet et al., 2015) (A) 植物茎尖分生组织结构; (B) 拟南芥茎尖分生组织调控网络: WUS在组织中心特异表达, WUS蛋白经过胞间连丝结构运输到中央区直接与CLV3启动子或者调控元件结合促进CLV3的表达; CLV3在中央区特异表达, CLV3小肽主要通过与受体激酶CLV1和BAM1结合传递信号, 抑制WUS表达, CLV3小肽也可以通过与受体激酶RPK2结合传递信号, 抑制WUS表达; (C) 水稻茎尖分生组织调控网络: FCP1和OsWOX4在茎尖分生组织中表达区域重合, FCP1分泌的小肽可能通过未知的受体传递信号, 抑制OsWOX4的表达; (D) 植物根尖分生组织结构; (E) 拟南芥根尖分生组织调控网络(左): 在远端中柱细胞特异表达的CLE40分泌的小肽通过与在远端中柱细胞起始细胞(根尖干细胞)特异表达的受体激酶ACR4结合传递信号, 抑制静止中心标志基因WOX5的表达; 拟南芥静止中心调控(右): ROW1可直接与WOX5启动子结合抑制其表达, WOX5通过直接与细胞分裂蛋白CYCDs的启动子结合, 抑制细胞分裂蛋白活性, 来维持静止中心较低的分裂速率; (F) 水稻FCP2在根尖表达, FCP2分泌的小肽可能通过一种未知的受体传递信号, 抑制静止中心标志基因OsWOX9的表达
Figure 1 Regulatory networks of WOX family in shoot and root apical meristems of Arabidopsis and rice (modified from Gaillochet et al., 2015) (A) The structure of shoot apical meristem (SAM); (B) The WUSCHEL-CLAVATA feedback loop in Arabidopsis: WUS expresses in the organizing center, and WUS protein moves symplastically through plasmodesmata to the overlying domain to determinate stem cell fate, WUS directly promotes the expression of CLV3, which encodes a small secreted peptide that signals through intracellular signal transduction pathways, inducing signaling transduction of CLV1, BAM1 and RPK2 to restrict the expression of WUS; (C) FCP1 and OsWOX4 express in the SAM, and FCP1 represses the expression of OsWOX4 in an unknown pathway; (D) The structure of root apical meristem (RAM); (E) CLE40 expresses in the columella, then this small secreted peptide combines with ACR4 in the columella to transfer signal and repress the expression of WOX5, which expresses specifically in the quiescent center (QC) (left); and involves in the maintenance of the QC (right): in QC, ROW1 specifically binds in the promoter of WOX5 to repress its transcription, and WOX5 suppresses QC divisions that are otherwise promoted by CYCDs, in part by represses CYCD’s expression directly; (F) OsWOX9 expresses specifically in the QC and its expression is specially repressed by FCP2.

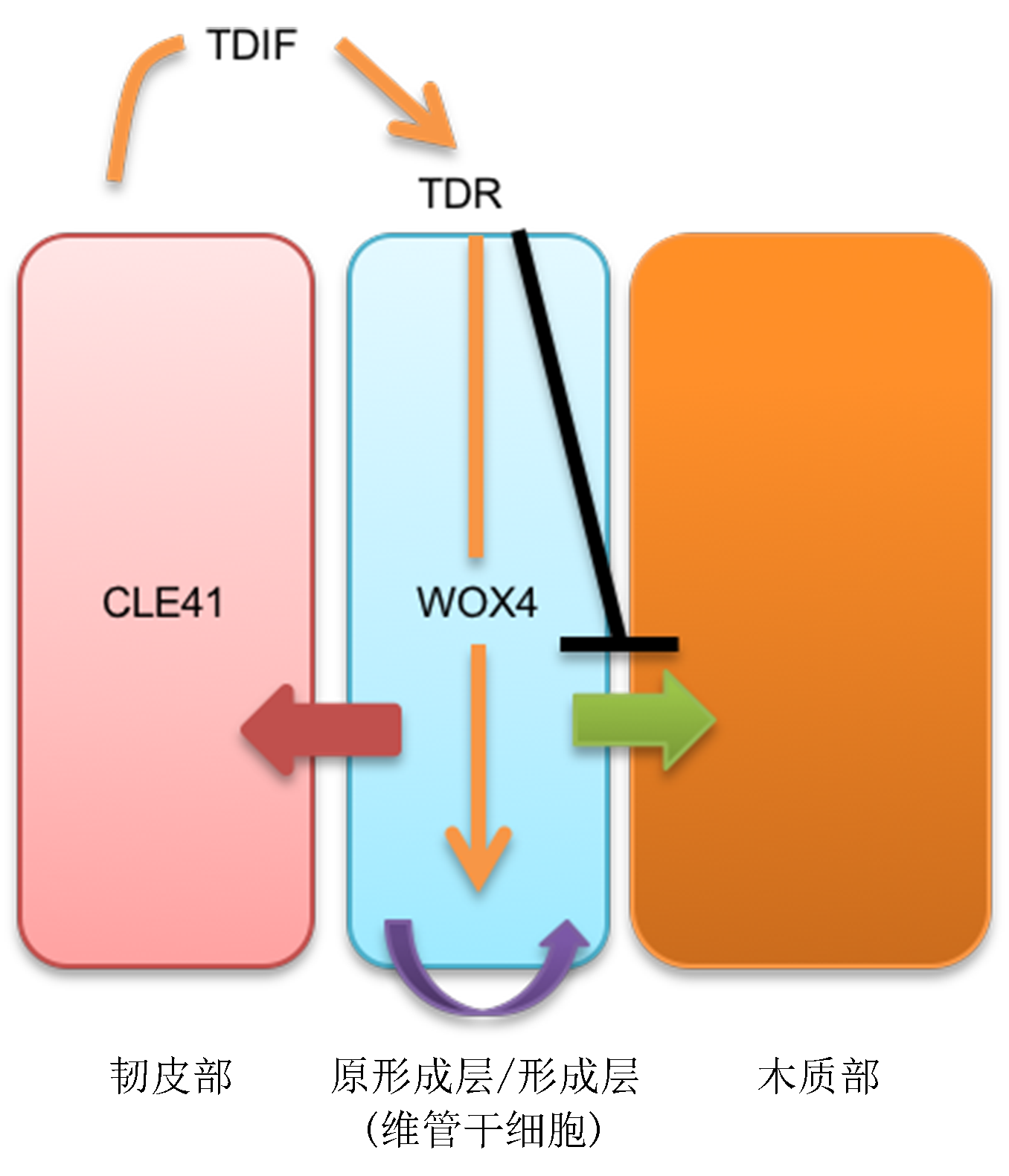

图2 WOX4参与拟南芥维管分生组织的调控(改自Hirakawa et al., 2010)
Figure 2 WOX4 is involved in the regulation of vascular meristem in Arabidopsis (modified from Hirakawa et al., 2010)
基因 | 编号 | 分支 | 在已发表文章中的命名(别名) | 其它物种中的 同源基因 | 表达区域 | 主要功能 | 参考文献 |
---|---|---|---|---|---|---|---|
OsWOX1 | LOC_Os04g56780 | 进化支 | MOC3 | 拟南芥WUS | 主要在地上部分、愈伤组织和幼穗 中表达, 在成熟 器官中表达较低 | 对腋芽的形成是必需的, 并与细胞分裂素有着复杂的关系 | Lu et al., 2015 |
OsWOX2 | LOC_Os05g02730 | 进化支 | WOX3; GLR1; OsWOX3B; NUDA/GL | 玉米NS1 (narrow sheath 1)、NS2和拟南芥PRS (PRESSED FLOWER) | 叶原基、幼叶和 生殖器官 | 叶毛发育 | Dai et al., 2007; Li et al., 2012; Zhang et al., 2012 |
OsWOX3 | LOC_Os11g01130 LOC_Os12g01120 | 进化支 | NAL2/3; OsWOX3A | 在叶片和叶鞘的 大小维管束鞘(尤其是韧皮组织)、 茎基部以及根的 维管柱中表达 | 叶片的横轴生长和维管束形成, 小穗的内外稃形态建成以及分蘖和侧根发育及根毛形成 | Cho et al., 2013; Yoo et al., 2013 | |
OsWOX4 | LOC_Os04g55590 | 进化支 | 无 | 拟南芥WOX4 | 在地上各分生组 织中广泛表达 | 营养生长阶段茎尖分生组织的维持; 与细胞分裂素作用相关 | Ohmori et al., 2013 |
OsWOX5 | LOC_Os01g62310 | 进化支 | 无 | 未知 | 未知 | 未知 | |
OsWOX6 | LOC_Os03g20910 | 中间支 | 无 | 未知 | 未知 | 未知 | |
OsWOX7 | LOC_Os01g47710 | 中间支 | DWT1 | 未知 | 在幼穗中强表达 | 参与分蘖发育; 与穂型相关 | Wang et al., 2013, 2014 |
OsWOX8 | LOC_Os01g60270 | 古老支 | 无 | 未知 | 未知 | 未知 | |
OsWOX9 | LOC_Os01g63510 | 进化支 | QHB | 拟南芥WOX5 | 特异地在根尖组 织中心表达 | 根尖分生组织的维持 | Kamiya et al., 2003; Chu et al., 2013 |
OsWOX9C | LOC_Os05g48990 | 中间支 | 无 | 未知 | 未知 | 未知 | |
OsWOX10 | LOC_Os08g14400 | 中间支 | 无 | 未知 | 未知 | 未知 | |
OsWOX11 | LOC_Os07g48560 | 中间支 | 无 | 未知 | 冠根萌发时表达; 成熟根的分裂区 | 在冠根发育时期直接抑制RR2, 以调节细胞增殖 | Zhao et al., 2009 |
表1 水稻中WOX家族基因的功能总结
Table 1 The summary of WOX gene family function in rice
基因 | 编号 | 分支 | 在已发表文章中的命名(别名) | 其它物种中的 同源基因 | 表达区域 | 主要功能 | 参考文献 |
---|---|---|---|---|---|---|---|
OsWOX1 | LOC_Os04g56780 | 进化支 | MOC3 | 拟南芥WUS | 主要在地上部分、愈伤组织和幼穗 中表达, 在成熟 器官中表达较低 | 对腋芽的形成是必需的, 并与细胞分裂素有着复杂的关系 | Lu et al., 2015 |
OsWOX2 | LOC_Os05g02730 | 进化支 | WOX3; GLR1; OsWOX3B; NUDA/GL | 玉米NS1 (narrow sheath 1)、NS2和拟南芥PRS (PRESSED FLOWER) | 叶原基、幼叶和 生殖器官 | 叶毛发育 | Dai et al., 2007; Li et al., 2012; Zhang et al., 2012 |
OsWOX3 | LOC_Os11g01130 LOC_Os12g01120 | 进化支 | NAL2/3; OsWOX3A | 在叶片和叶鞘的 大小维管束鞘(尤其是韧皮组织)、 茎基部以及根的 维管柱中表达 | 叶片的横轴生长和维管束形成, 小穗的内外稃形态建成以及分蘖和侧根发育及根毛形成 | Cho et al., 2013; Yoo et al., 2013 | |
OsWOX4 | LOC_Os04g55590 | 进化支 | 无 | 拟南芥WOX4 | 在地上各分生组 织中广泛表达 | 营养生长阶段茎尖分生组织的维持; 与细胞分裂素作用相关 | Ohmori et al., 2013 |
OsWOX5 | LOC_Os01g62310 | 进化支 | 无 | 未知 | 未知 | 未知 | |
OsWOX6 | LOC_Os03g20910 | 中间支 | 无 | 未知 | 未知 | 未知 | |
OsWOX7 | LOC_Os01g47710 | 中间支 | DWT1 | 未知 | 在幼穗中强表达 | 参与分蘖发育; 与穂型相关 | Wang et al., 2013, 2014 |
OsWOX8 | LOC_Os01g60270 | 古老支 | 无 | 未知 | 未知 | 未知 | |
OsWOX9 | LOC_Os01g63510 | 进化支 | QHB | 拟南芥WOX5 | 特异地在根尖组 织中心表达 | 根尖分生组织的维持 | Kamiya et al., 2003; Chu et al., 2013 |
OsWOX9C | LOC_Os05g48990 | 中间支 | 无 | 未知 | 未知 | 未知 | |
OsWOX10 | LOC_Os08g14400 | 中间支 | 无 | 未知 | 未知 | 未知 | |
OsWOX11 | LOC_Os07g48560 | 中间支 | 无 | 未知 | 冠根萌发时表达; 成熟根的分裂区 | 在冠根发育时期直接抑制RR2, 以调节细胞增殖 | Zhao et al., 2009 |
1 | Aichinger E, Kornet N, Friedrich T, Laux T (2012). Plant stem cell niches.Annu Rev Plant Biol 63, 615-636. |
2 | Andrianov GN, Akoev GN, Braun HA, Ryzhova IV, Voigt KH, Sherman NO (1993). Actions of dalargin upon single unit activity in the ampullae of Lorenzini of the skate Raja clavata.Neuroreport 4, 53-54. |
3 | Bleckmann A, Weidtkamp-Peters S, Seidel CA, Simon R (2010). Stem cell signaling in Arabidopsis requires CRN to localize CLV2 to the plasma membrane.Plant Physiol 152, 166-176. |
4 | Cho SH, Yoo SC, Zhang H, Pandeya D, Koh HJ, Hwang JY, Kim GT, Paek NC (2013). The rice narrow leaf2 and narrow leaf3 loci encode WUSCHEL-related homeobox 3A (OsWOX3A) and function in leaf, spikelet, tiller and lateral root development.New Phytol 198, 1071-1084. |
5 | Chu H, Liang W, Li J, Hong F, Wu Y, Wang L, Wang J, Wu P, Liu C, Zhang Q, Xu J, Zhang D (2013). A CLE-WOX signaling module regulates root meristem maintenance and vascular tissue development in rice.J Exp Bot 64, 5359-5369. |
6 | Chu H, Qian Q, Liang W, Yin C, Tan H, Yao X, Yuan Z, Yang J, Huang H, Luo D, Ma H, Zhang D (2006). The FLORAL ORGAN NUMBER4 gene encoding a putative ortholog of Arabidopsis CLAVATA3 regulates apical meristem size in rice.Plant Physiol 142, 1039-1052. |
7 | Dai M, Hu Y, Zhao Y, Liu H, Zhou DX (2007). A WUSCHEL- LIKE HOMEOBOX gene represses a YABBY gene expression required for rice leaf development.Plant Physiol 144, 380-390. |
8 | Daum G, Medzihradszky A, Suzaki T, Lohmann JU (2014). A mechanistic framework for noncell autonomous stem cell induction in Arabidopsis.Proc Natl Acad Sci USA 111, 14619-14624. |
9 | De Smet I, Vassileva V, De Rybel B, Levesque MP, Grunewald W, Van Damme D, Van Noorden G, Naudts M, Van Isterdael G, De Clercq R, Wang JY, Meuli N, Vanneste S, Friml J, Hilson P, Jurgens G, Ingram GC, Inze D, Benfey PN, Beeckman T (2008). Receptor-like kinase ACR4 restricts formative cell divisions in the Arabidopsis root.Science 322, 594-597. |
10 | Dinneny JR, Benfey PN (2008). Plant stem cell niches: standing the test of time.Cell 132, 553-557. |
11 | Etchells JP, Provost CM, Mishra L, Turner SR (2013). WOX4 and WOX14 act downstream of the PXY receptor kinase to regulate plant vascular proliferation independently of any role in vascular organisation.Development 140, 2224-2234. |
12 | Fletcher JC, Brand U, Running MP, Simon R, Meyerowitz EM (1999). Signaling of cell fate decisions by CLAVATA3 in Arabidopsis shoot meristems.Science 283, 1911-1914. |
13 | Forzani C, Aichinger E, Sornay E, Willemsen V, Laux T, Dewitte W, Murray JA (2014). WOX5 suppresses CYCLIN D activity to establish quiescence at the center of the root stem cell niche.Curr Biol 24, 1939-1944. |
14 | Haecker A, Gross-Hardt R, Geiges B, Sarkar A, Breuninger H, Herrmann M, Laux T (2004). Expression dynamics of WOX genes mark cell fate decisions during early embryonic patterning in Arabidopsis thaliana.Development 131, 657-668. |
15 | Han P, Zhu YX (2009). BARD1 may be renamed ROW1 because it functions mainly as a REPRESSOR OF WUSCHEL1.Plant Signal Behav 4, 52-54. |
16 | Hirakawa Y, Kondo Y, Fukuda H (2010). TDIF peptide signaling regulates vascular stem cell proliferation via the WOX4 homeobox gene in Arabidopsis.Plant Cell 22, 2618-2629. |
17 | Ikeda M, Mitsuda N, Ohme-Takagi M (2009). Arabidopsis WUSCHEL is a bifunctional transcription factor that acts as a repressor in stem cell regulation and as an activator in floral patterning.Plant Cell 21, 3493-3505. |
18 | Ito Y, Nakanomyo I, Motose H, Iwamoto K, Sawa S, Dohmae N, Fukuda H (2006). Dodeca-CLE peptides as suppressors of plant stem cell differentiation.Science 313, 842-845. |
19 | Jeong S, Trotochaud AE, Clark SE (1999). The Arabidopsis CLAVATA2 gene encodes a receptor-like protein required for the stability of the CLAVATA1 receptor-like kinase.Plant Cell 11, 1925-1934. |
20 | Ji J, Strable J, Shimizu R, Koenig D, Sinha N, Scanlon MJ (2010). WOX4 promotes procambial development.Plant Physiol 152, 1346-1356. |
21 | Jürgens G, Torres-Ruiz R, Laux T, Mayer U, Berleth T (1994). Early events in the apical-basal pattern formation in Arabidopsis.Nato Asi Series H Cell Biol 81, 95-103. |
22 | Kamiya N, Nagasaki H, Morikami A, Sato Y, Matsuoka M (2003). Isolation and characterization of a rice WUSCHEL- type homeobox gene that is specifically expressed in the central cells of a quiescent center in the root apical meri- stem.Plant J 35, 429-441. |
23 | Kinoshita A, Betsuyaku S, Osakabe Y, Mizuno S, Nagawa S, Stahl Y, Simon R, Yamaguchi-Shinozaki K, Fukuda H, Sawa S (2010). RPK2 is an essential receptor-like kinase that transmits the CLV3 signal in Arabidopsis.Development 137, 3911-3920. |
24 | Laux T (2003). The stem cell concept in plants: a matter of debate.Cell 113, 281-283. |
25 | Laux T, Mayer KF, Berger J, Jürgens G (1996). The WUSCHEL gene is required for shoot and floral meristem integrity in Arabidopsis.Development 122, 87-96. |
26 | Lenhard M, Laux T (2003). Stem cell homeostasis in the Arabidopsis shoot meristem is regulated by intercellular movement of CLAVATA3 and its sequestration by CLAVATA1.Development 130, 3163-3173. |
27 | Li J, Yuan Y, Lu Z, Yang L, Gao R, Lu J, Xiong G (2012). Glabrous Rice 1, encoding a homeodomain protein, regu- lates trichome development in rice.Rice 5, 32. |
28 | Lian G, Ding Z, Wang Q, Zhang D, Xu J (2014). Origins and evolution of WUSCHEL-related homeobox protein family in plant kingdom.Scientific World J 2014, 534140. |
29 | Lu Z, Shao G, Xiong J, Jiao Y, Wang J, Liu G, Meng X, Liang Y, Xiong G, Wang Y, Li J (2015). MONOCULM 3, an ortholog of WUSCHEL in rice, is required for tiller bud formation.J Genet Genomics 42, 71-78. |
30 | Matsumoto N, Okada K (2001). A homeobox gene, PRESSED FLOWER, regulates lateral axis-dependent development of Arabidopsis flowers.Genes Dev 15, 3355-3364. |
31 | Mukherjee K, Brocchieri L, Burglin TR (2009). A comprehensive classification and evolutionary analysis of plant homeobox genes.Mol Biol Evol 26, 2775-2794. |
32 | Nardmann J, Werr W (2006). The shoot stem cell niche in angiosperms: expression patterns of WUS orthologues in rice and maize imply major modifications in the course of mono- and dicot evolution.Mol Biol Evol 23, 2492-2504. |
33 | Nimchuk ZL, Tarr PT, Meyerowitz EM (2011). An evolutionarily conserved pseudokinase mediates stem cell pro- duction in plants.Plant Cell 23, 851-854. |
34 | Ogawa M, Shinohara H, Sakagami Y, Matsubayashi Y (2008). Arabidopsis CLV3 peptide directly binds CLV1 ectodomain.Science 319, 294. |
35 | Ohmori Y, Tanaka W, Kojima M, Sakakibara H, Hirano HY (2013). WUSCHEL-RELATED HOMEOBOX4 is involved in meristem maintenance and is negatively regulated by the CLE gene FCP1 in rice.Plant Cell 25, 229-241. |
36 | Perales M, Reddy GV (2012). Stem cell maintenance in shoot apical meristems.Curr Opin Plant Biol 15, 10-16. |
37 | Sarkar AK, Luijten M, Miyashima S, Lenhard M, Hashimoto T, Nakajima K, Scheres B, Heidstra R, Laux T (2007). Conserved factors regulate signaling in Arabidopsis thaliana shoot and root stem cell organizers.Nature 446, 811-814. |
38 | Scheres B (2007). Stem-cell niches: nursery rhymes across kingdoms.Nat Rev Mol Cell Biol 8, 345-354. |
39 | Schoof H, Lenhard M, Haecker A, Mayer KF, Jurgens G, Laux T (2000). The stem cell population of Arabidopsis shoot meristems in maintained by a regulatory loop between the CLAVATA and WUSCHEL genes.Cell 100, 635-644. |
40 | Shimizu R, Ji J, Kelsey E, Ohtsu K, Schnable PS, Scanlon MJ (2009). Tissue specificity and evolution of meristematic WOX3 function.Plant Physiol 149, 841-850. |
41 | Shinohara H, Matsubayashi Y (2015). Reevaluation of the CLV3-receptor interaction in the shoot apical meristem: dissection of the CLV3 signaling pathway from a direct ligand-binding point of view.Plant J 82, 328-336. |
42 | Stahl Y, Wink RH, Ingram GC, Simon R (2009). A signaling module controlling the stem cell niche in Arabidopsis root meristems.Curr Biol 19, 909-914. |
43 | Steeves TA, Sussex IM (1989). Patterns in Plant Develop- ment, 2nd edn. Cambridge & New York: Cambridge University Press. |
44 | Suzaki T, Sato M, Ashikari M, Miyoshi M, Nagato Y, Hirano HY (2004). The gene FLORAL ORGAN NUMBER1 regulates floral meristem size in rice and encodes a leucine-rich repeat receptor kinase orthologous to Arabidopsis CLAVATA1.Development 131, 5649-5657. |
45 | Suzaki T, Toriba T, Fujimoto M, Tsutsumi N, Kitano H, Hirano HY (2006). Conservation and diversification of meristem maintenance mechanism in Oryza sativa: function of the FLORAL ORGAN NUMBER2 gene.Plant Cell Physiol 47, 1591-1602. |
46 | van den Berg C, Willemsen V, Hendriks G, Weisbeek P, Scheres B (1997). Short-range control of cell differentiation in the Arabidopsis root meristem.Nature 390, 287-289. |
47 | van der Graaff E, Laux T, Rensing SA (2009). The WUS homeobox-containing (WOX) protein family.Genome Biol 10, 248. |
48 | Vandenbussche M, Horstman A, Zethof J, Koes R, Rijpkema AS, Gerats T (2009). Differential recruitment of WOX transcription factors for lateral development and organ fusion in Petunia and Arabidopsis.Plant Cell 21, 2269-2283. |
49 | Veit B (2009). Hormone mediated regulation of the shoot apical meristem.Plant Mol Biol 69, 397-408. |
50 | Wang W, Chu H, Zhang D, Liang W (2013). Fine mapping and analysis of DWARF TILLER1 in controlling rice architecture.J Genet Genomics 40, 493-495. |
51 | Wang W, Li G, Zhao J, Chu H, Lin W, Zhang D, Wang Z, Liang W (2014). DWARF TILLER1, a WUSCHEL-related homeobox transcription factor, is required for tiller growth in rice.PLoS Genet 10, e1004154. |
52 | Yadav RK, Perales M, Gruel J, Girke T, Jonsson H, Reddy GV (2011). WUSCHEL protein movement mediates stem cell homeostasis in the Arabidopsis shoot apex.Genes Dev 25, 2025-2030. |
53 | Yoo SC, Cho SH, Paek NC (2013). Rice WUSCHEL-related homeobox 3A (OsWOX3A) modulates auxin-transport gene expression in lateral root and root hair development.Plant Signal Behav 8, e25929. |
54 | Zhang D, Yuan Z (2014). Molecular control of grass inflorescence development.Annu Rev Plant Biol 65, 553-578. |
55 | Zhang F, Wang Y, Li G, Tang Y, Kramer EM, Tadege M (2014). STENOFOLIA recruits TOPLESS to repress ASYMMETRIC LEAVES2 at the leaf margin and promote leaf blade outgrowth in Medicago truncatula.Plant Cell 26, 650-664. |
56 | Zhang H, Wu K, Wang Y, Peng Y, Hu F, Wen L, Han B, Qian Q, Teng S (2012). A WUSCHEL-like homeobox gene, OsWOX3B responses to NUDA/GL-1 locus in rice.Rice 5, 30. |
57 | Zhang X, Zong J, Liu J, Yin J, Zhang D (2010). Genome-wide analysis of WOX gene family in rice, sorghum, maize, Arabidopsis and poplar.J Integr Plant Biol 52, 1016-1026. |
58 | Zhang Y, Jiao Y, Liu Z, Zhu YX (2015). ROW1 maintains quiescent centre identity by confining WOX5 expression to specific cells.Nat Commun 6, 6003. |
59 | Zhao Y, Hu Y, Dai M, Huang L, Zhou DX (2009). The WU- SCHEL-related homeobox gene WOX11 is required to activate shoot-borne crown root development in rice.Plant Cell 21, 736-748. |
