快速高效检测植物体内蛋白泛素化修饰研究方法

doi:10.11983/CBB19153

摘要/Abstract

摘要： UPS参与植物中绝大多数的信号转导通路。其中, 一些激素的受体本身就是E3泛素连接酶, 如茉莉酸(JA)受体COI1和生长素(auxin)受体TIR1都是F-box蛋白, 它们通过特异性介导相应转录抑制子的泛素化降解来传递激素信号, 但对于整个UPS体系而言, 由于技术的限制, 迄今为止仅见少量泛素连接酶与特异性底物间生化机制的报道。用大肠杆菌(Escherichia coli)表达蛋白实施泛素连接酶泛素化修饰底物的体外实验是验证泛素连接酶/底物对的常用方法, 但由于体外实验缺乏某些蛋白必需的转录后修饰, 导致实验结果有时存在假阴性。利用农杆菌注射烟草(Nicotiana benthamiana)瞬时表达蛋白的方法, 建立高效的植物体内检测蛋白泛素化系统, 可以快速检测蛋白泛素化, 包括检测泛素连接酶和底物的特异性相互作用、底物蛋白的自身泛素化、泛素连接酶对底物降解的促进作用、26S蛋白酶体抑制剂MG132对底物降解的抑制作用以及用植物内源表达蛋白进行体外泛素化反应。

关键词: 体内泛素化检测, E3泛素连接酶, 烟草瞬时表达系统

Abstract: The UPS (ubiquitination/proteasome system) plays a vital role in nearly all plant signaling processes, for example, jasmonic acid receptor COI1 (coronotine insensitive protein 1) and auxin receptor TIR1 (transport inhibitor response 1) are F-box type E3s ligases, and they promote the ubiquitination then degradation of specific transcriptional repressors through 26S proteasome to activate hormone signaling. However, for the whole UPS system, only a few E3 ligase/substrate pairs’ interactions have been demonstrated due to technical limitations in plants. Generally, E3 ligase and substrate are expressed in Escherichia coli for ubiquitination assay, which may lack post-translational modifications that are important for protein function, then gives false negative result. We describe a quick and efficient assay for detecting E3-mediated protein ubiquitination in vivo by means of agroinfiltration for transient expression of relevant genes in tobacco (Nicotiana benthamiana) leaves. In detail, this method can detect the specific interaction between E3 ligase and substrate, substrate ubiquitination, the effect of E3 ligase on degradation of its substrate, inhibition of substrate degradation by 26S proteasome inhibitor MG132, and in vitro ubiquitination assay with endogenous plant proteins.

Key words: in vivo ubiquitination assay, E3 ubiquitin ligases, transient expression system in tobacco

刘利静,赵庆臻,谢旗,于菲菲. 快速高效检测植物体内蛋白泛素化修饰研究方法. 植物学报, 2019, 54(6): 753-763.

Lijing Liu,Qingzhen Zhao,Qi Xie,Feifei Yu. An Quick and Efficient Assay for In Vivo Protein Ubiquitination. Chinese Bulletin of Botany, 2019, 54(6): 753-763.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.chinbullbotany.com/CN/10.11983/CBB19153

https://www.chinbullbotany.com/CN/Y2019/V54/I6/753

图/表 7

图1 用烟草注射法检测HY5与COP1之间的相互作用(Liu et al., 2010) (A) 利用anti-MYC抗体进行免疫共沉淀反应, 用anti-GFP抗体进行western blot检测; (B) 利用anti-GFP抗体进行免疫共沉淀反应, 用anti-MYC抗体进行western blot检测。左侧数字是蛋白marker的分子量(kDa); IgG H: IgG重链蛋白

Figure 1 HY5 and COP1 interact with each other in Nicotiana benthamiana (Liu et al., 2010) (A) Samples were immunoprecipitated with anti-MYC antibody and immunoblotted with anti-GFP antibody; (B) Samples were immunoprecipitated with anti-GFP antibody and immunoblotted with anti-MYC antibody. The numbers on the left show the molecular masses of marker proteins in kiloDaltons (kDa). IgG H: IgG heavy chains

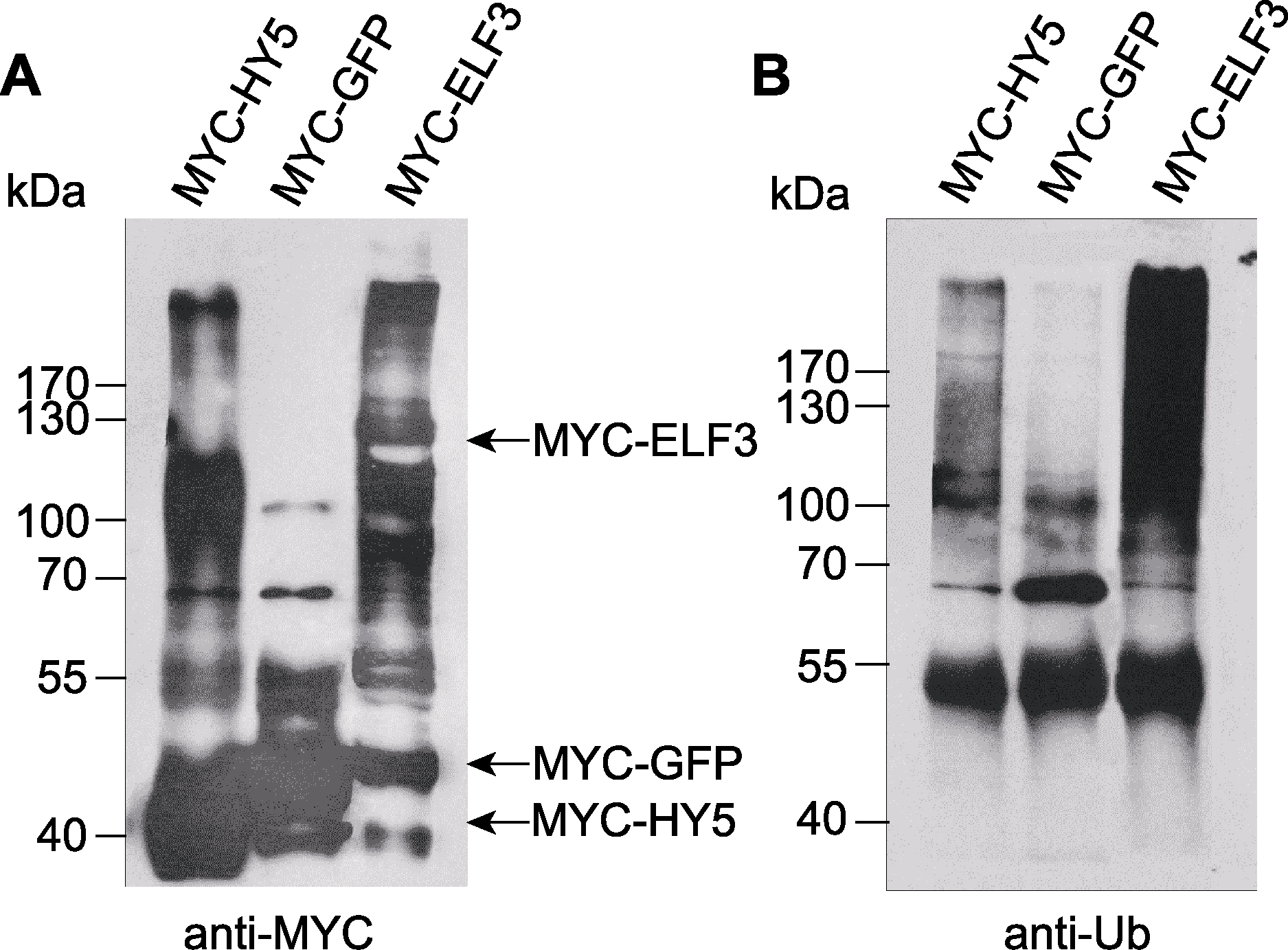

图2 烟草注射法检测底物蛋白HY5和ELF3体内的自身泛素化情况(Liu et al., 2010) (A) 利用anti-MYC抗体对免疫沉淀的样品进行western blot检测; (B) 利用anti-Ub抗体对免疫沉淀的样品进行western blot检测。左侧数字是蛋白marker的分子量(kDa)。

Figure 2 Polyubiquitinated MYC-HY5 and MYC-ELF3 can be detected in Nicotiana benthamiana (Liu et al., 2010) (A) Immunoblots of immunoprecipitated samples with anti- MYC antibody; (B) Immunoblots of immunoprecipitated samples with anti-Ub antibody. The numbers on the left show the molecular masses of marker proteins in kiloDaltons (kDa).

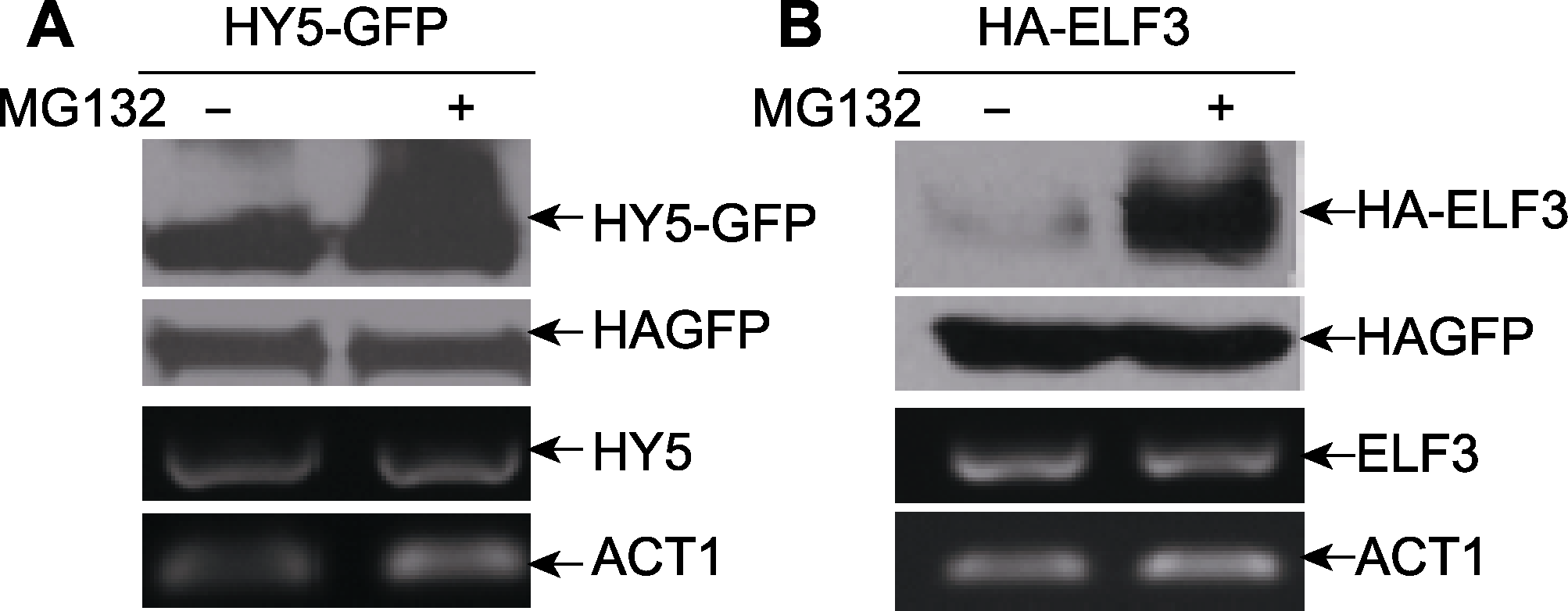

图3 烟草注射法检测MG132对底物蛋白稳定性的影响(Liu et al., 2010) (A) MG132对HY5-GFP蛋白稳定性的影响; (B) MG132对HA-ELF3蛋白稳定性的影响

Figure 3 Effects of MG132 on protein stabilities of substrates in Nicotiana benthamiana (Liu et al., 2010) (A) The effect of MG132 on protein stability of HY5-GFP; (B) The effect of MG132 on protein stability of HA-ELF3

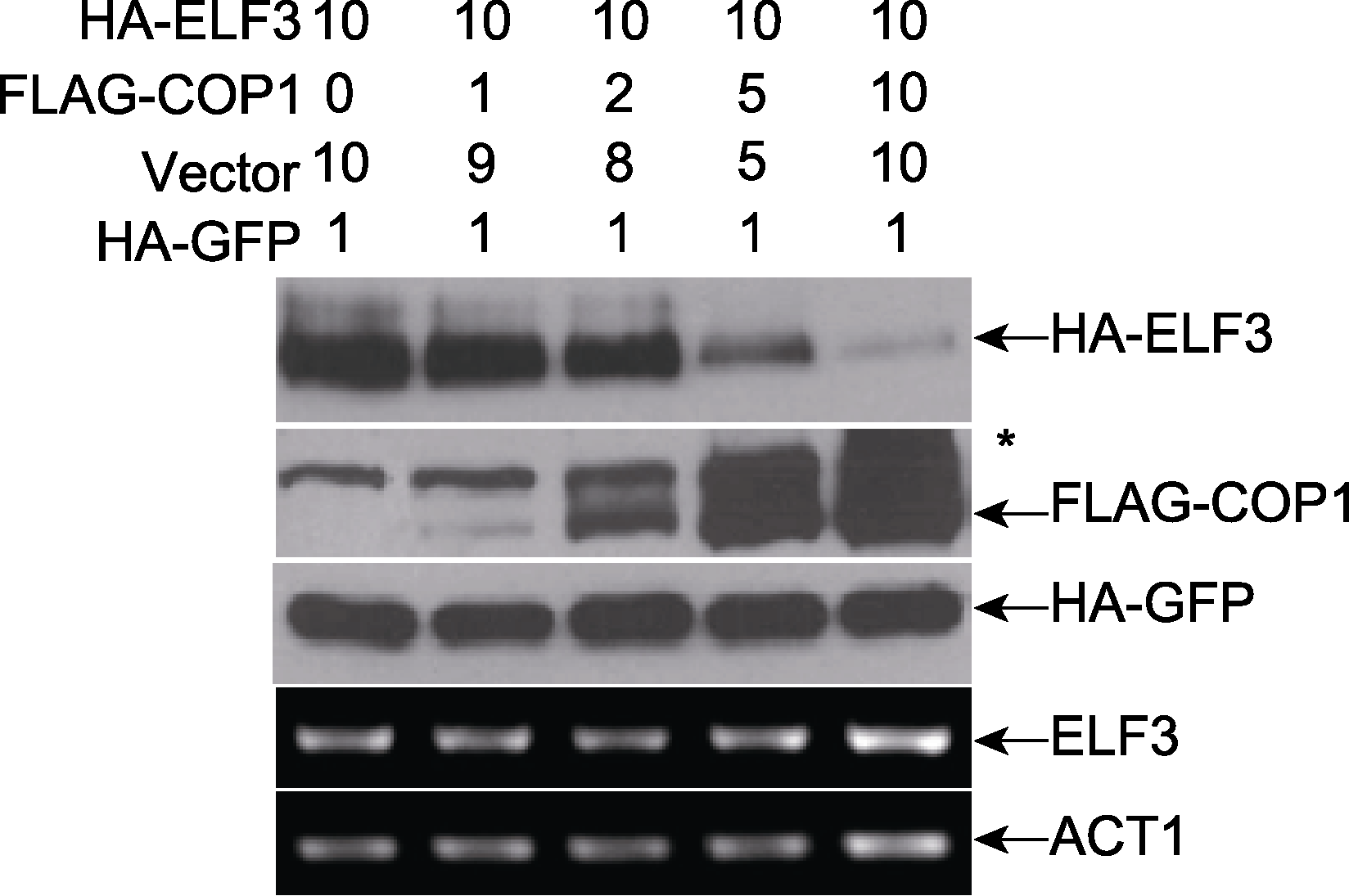

图4 烟草注射法在体内检测COP1蛋白量对ELF3稳定性的影响(Liu et al., 2010) * 为anti-FLAG抗体检测到的非特异性条带。

Figure 4 COP1-promoted ELF3 degradation can be detected in Nicotiana benthamiana (Liu et al., 2010) * Unspecific bands detected by anti-FLAG antibody.

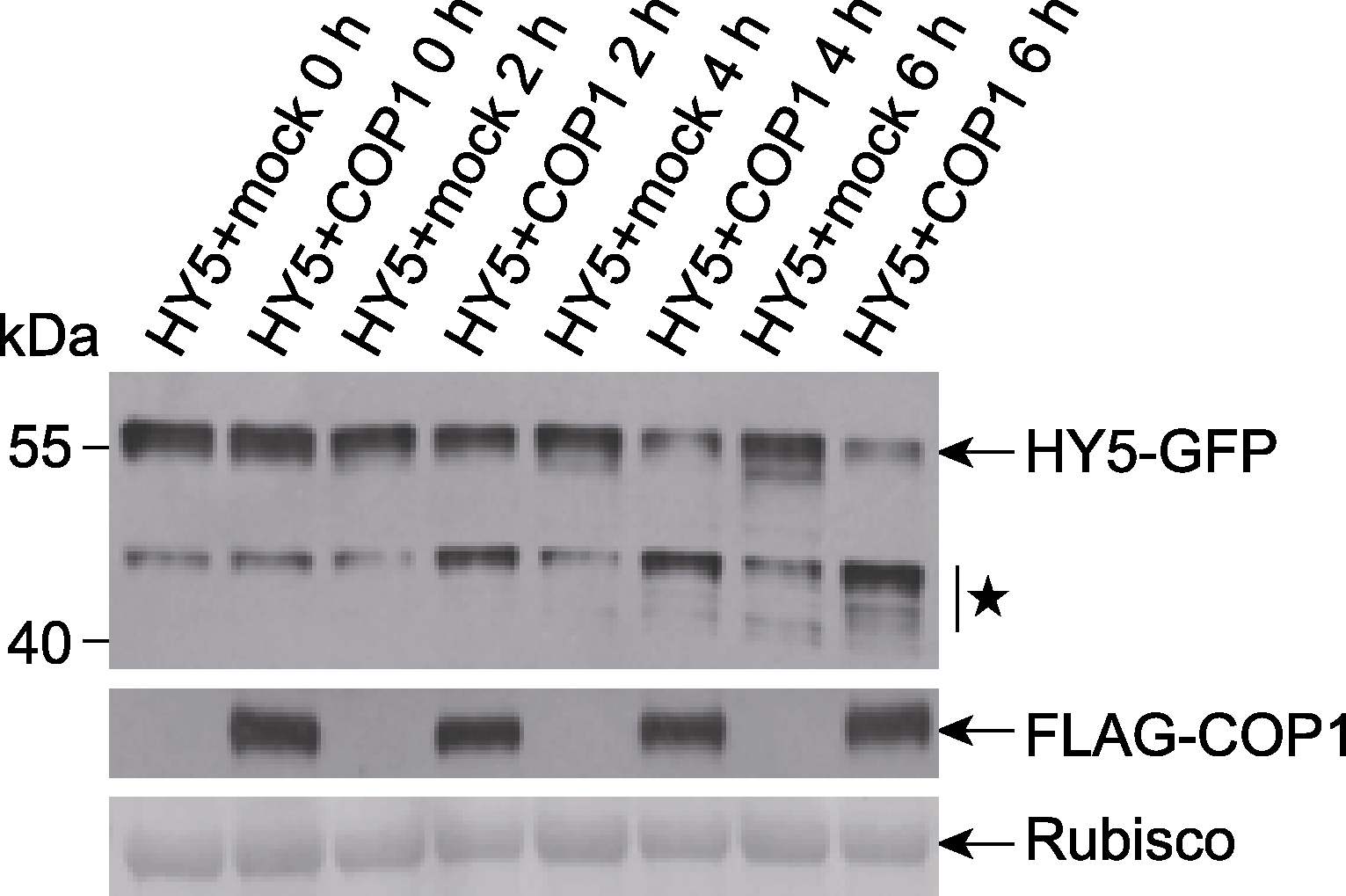

图5 半体内实验检测COP1促进HY5的降解(Liu et al., 2010) ★为降解形式的HY5-GFP。左侧数字是蛋白marker的分子量(kDa)。

Figure 5 Detection of COP1-promoted HY5 degradation in a semi-in vivo experiment (Liu et al., 2010) ★ The degradation form of HY5-GFP. The numbers on the left show the molecular masses of marker proteins in kiloDaltons (kDa).

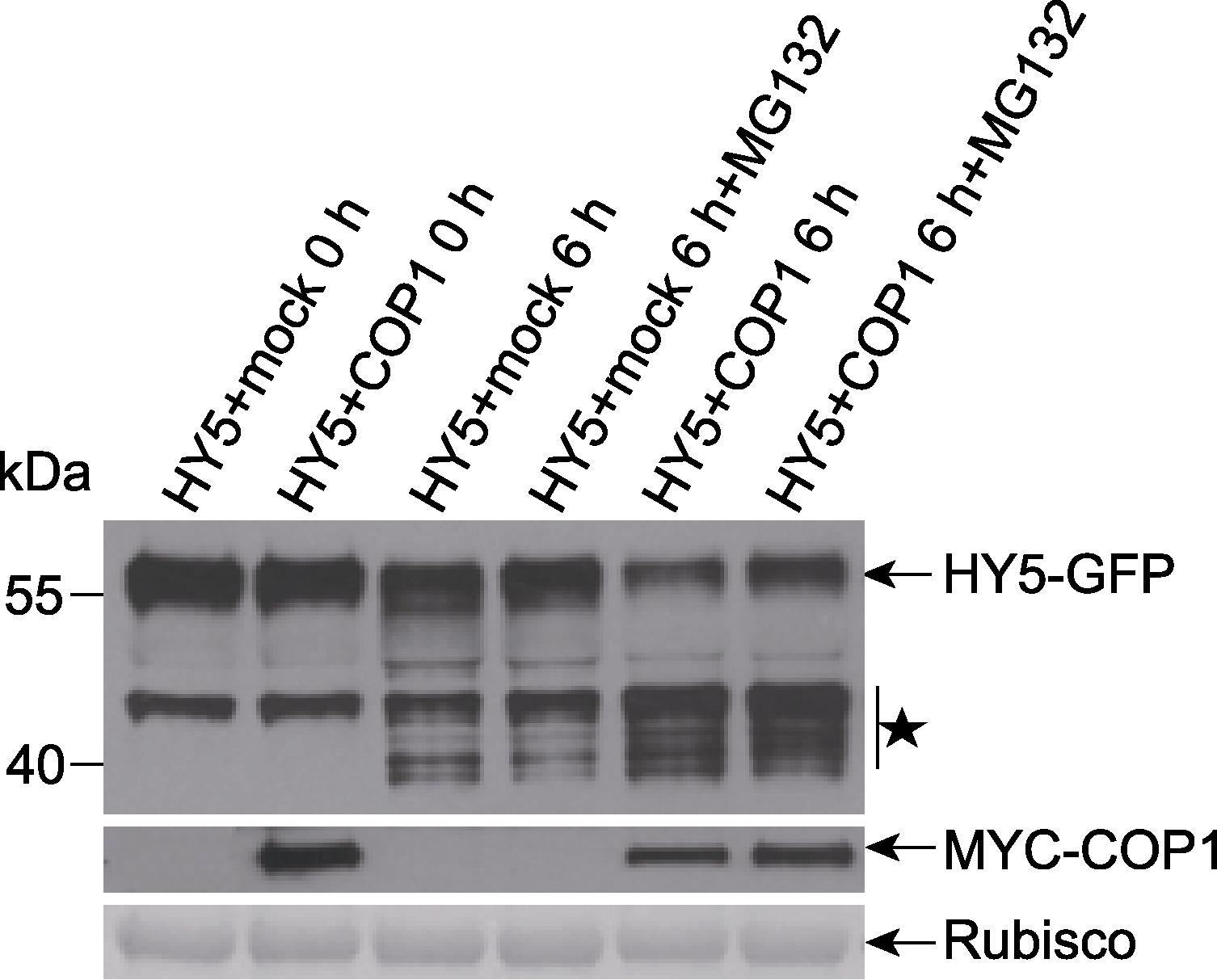

图6 半体内实验检测MG132抑制COP1对HY5的降解(Liu et al., 2010) ★为降解形式的HY5-GFP。左侧数字是蛋白marker的分子量(kDa)。

Figure 6 MG132 inhibition on COP1 promote HY5 degradation can be detected in a semi-in vivo experiment (Liu et al., 2010) ★ The degradation form of HY5-GFP. The numbers on the left show the molecular masses of marker proteins in kiloDaltons (kDa).

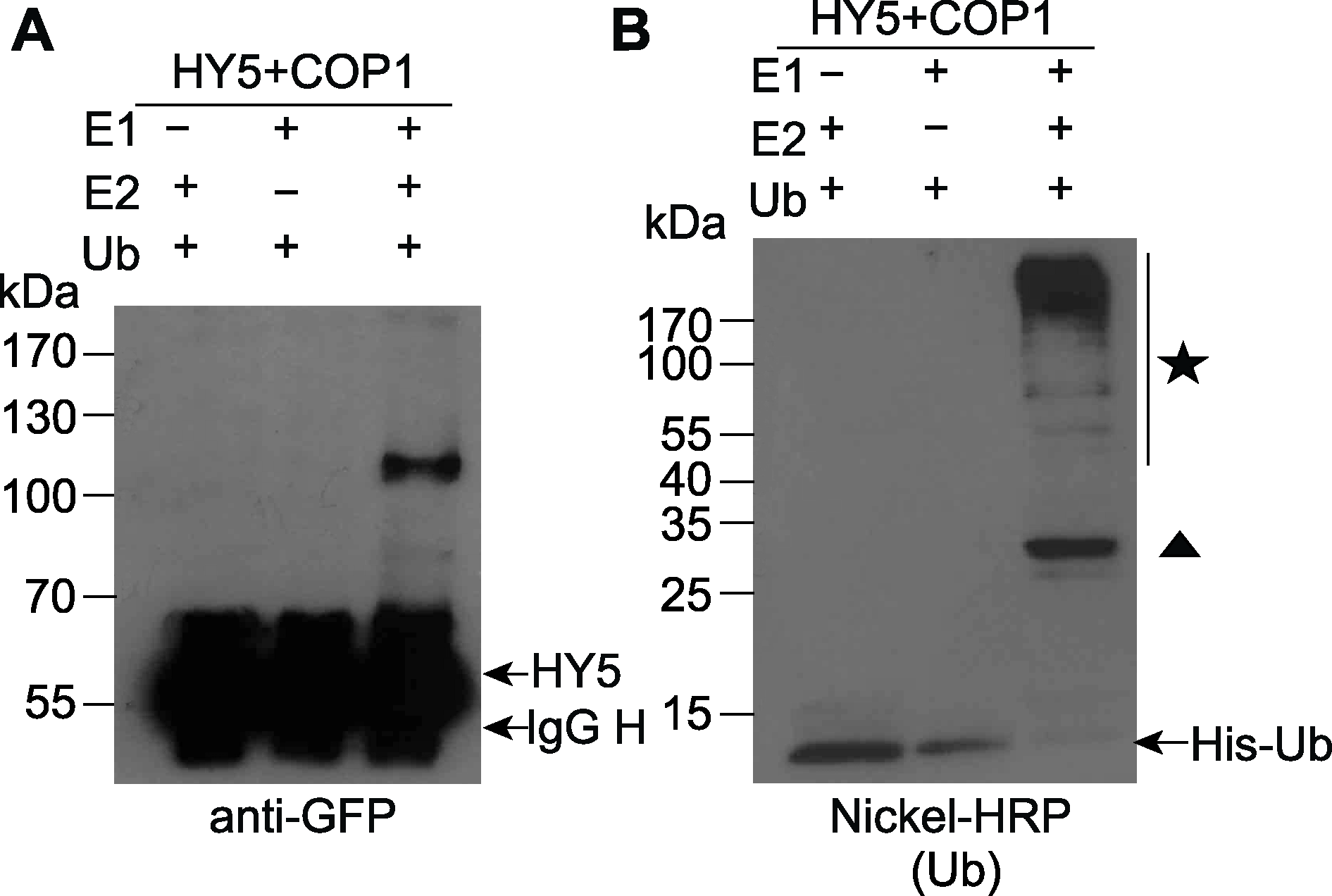

图7 烟草注射法表达的蛋白可用于体外泛素化实验(Liu et al., 2010) (A) 利用anti-GFP检测样品的体外泛素化情况; (B) 利用Nickel-HRP检测样品的体外泛素化情况。★为COP1自身泛素化及HY5泛素化条带的混合物。▲为泛素化的E2。左侧数字是蛋白marker的分子量(kDa)。IgG H: IgG重链蛋白

Figure 7 Proteins expressed in tobacco can be used for in vitro ubiquitination reaction (Liu et al., 2010) (A) Immunoblots of the in vitro ubiquitination assays samples with anti-GFP antibody; (B) Immunoblots of the in vitro ubiquitination assays samples with Nickel-HRP to detect His-ubiquitin. ★ The mixture of poly-ubiquitinated HY5-GFP and Myc-COP1. ▲ Mono-ubiquitinated E2. The numbers on the left show the molecular masses of marker proteins in kiloDaltons (kDa). IgG H: IgG heavy chain

参考文献 24

[1]	赵庆臻, 刘利静, 谢旗, 于菲菲 ( 2019). 植物蛋白的体外泛素化检测方法. 植物学报 54, 764-772.
[2]	Chakrabarty R, Banerjee R, Chung SM, Farman M, Citovsky V, Hogenhout SA, Tzfira T, Goodin M ( 2007). PSITE vectors for stable integration or transient expression of autofluorescent protein fusions in plants: probing Nicotiana benthamiana -virus interactions. Mol Plant Microbe Interact 20, 740-750.
[3]	Chen G, Huang H, Frohlich O, Yang Y, Klein JD, Price SR, Sands JM ( 2008). MDM2 E3 ubiquitin ligase mediates UT-A1 urea transporter ubiquitination and degradation. Am J Physiol Renal Physiol 295, F1528-F1534.
[4]	Fang S, Jensen JP, Ludwig RL, Vousden KH, Weissman AM ( 2000). MDM2 is a RING finger-dependent ubiquitin protein ligase for itself and p53. J Biol Chem 275, 8945-8951.
[5]	Goodin MM, Dietzgen RG, Schichnes D, Ruzin S, Jackson AO ( 2002). pGD vectors: versatile tools for the expression of green and red fluorescent protein fusions in agroinfiltrated plant leaves. Plant J 31, 375-383.
[6]	Johansen LK, Carrington JC ( 2001). Silencing on the spot. Induction and suppression of RNA silencing in the Agrobacterium -mediated transient expression system. Plant Physiol 126, 930-938.
[7]	Kościańska E, Kalantidis K, Wypijewski K, Sadowski J, Tabler M ( 2005). Analysis of RNA silencing in agroinfiltrated leaves of Nicotiana benthamiana and Nicotiana tabacum. Plant Mol Biol 59, 647-661.
[8]	Lee HK, Cho SK, Son O, Xu Z, Hwang I, Kim WT ( 2009). Drought stress-induced Rma1H1, a RING membrane- anchor E3 ubiquitin ligase homolog, regulates aquaporin levels via ubiquitination in transgenic Arabidopsis plants. Plant Cell 21, 622-641.
[9]	Liu H, Stone SL ( 2010). Abscisic acid increases Arabidopsis ABI5 transcription factor levels by promoting KEG E3 ligase self-ubiquitination and proteasomal degradation. Plant Cell 22, 2630-2641.
[10]	Liu LL, Zhang YY, Tang SY, Zhao QZ, Zhang ZH, Zhang HW, Dong L, Guo HS, Xie Q ( 2010). An efficient system to detect protein ubiquitination by agroinfiltration in Nicotiana benthamiana. Plant J 61, 893-903.
[11]	Ma P, Liu J, He H, Yang M, Li M, Zhu X, Wang X ( 2009). A viral suppressor P1/HC-pro increases the GFP gene expression in Agrobacterium-mediated transient assay. Appl Biochem Biotechnol 158, 243-252.
[12]	Mokrzycki-Issartel N, Bouchon B, Farrer S, Berland P, Laparra H, Madelmont JC, Theisen M ( 2003). A transient tobacco expression system coupled to MALDI-TOFMS allows validation of the impact of differential targeting on structure and activity of a recombinant therapeutic glycoprotein produced in plants. FEBS Lett 552, 170-176.
[13]	Osterlund MT, Hardtke CS, Wei N, Deng XW ( 2000). Targeted destabilization of HY5 during light-regulated development of Arabidopsis. Nature 405, 462-466.
[14]	Proietto M, Bianchi MM, Ballario P, Brenna A ( 2015). Epigenetic and posttranslational modifications in light signal transduction and the circadian clock in Neurospora crassa. Int J Mol Sci 16, 15347-15383.
[15]	Rodriguez M, Ramírez NI, Ayala M, Freyre F, Pérez L, Triguero A, Mateo C, Selman-Housein G, Gavilondo JV, Pujol M ( 2005). Transient expression in tobacco leaves of an aglycosylated recombinant antibody against the epidermal growth factor receptor. Biotechnol Bioeng 89, 188-194.
[16]	Smalle J, Vierstra RD ( 2004). The ubiquitin 26S proteasome proteolytic pathway. Annu Rev Plant Biol 55, 555-590.
[17]	Stone SL, Williams LA, Farmer LM, Vierstra RD, Callis J ( 2006). KEEP ON GOING, a RING E3 ligase essential for Arabidopsis growth and development, is involved in abscisic acid signaling. Plant Cell 18, 3415-3428.
[18]	Ueki S, Lacroix B, Krichevsky A, Lazarowitz SG, Citovsky V ( 2009). Functional transient genetic transformation of Arabidopsis leaves by biolistic bombardment. Nat Protoc 4, 71-77.
[19]	Vierstra RD ( 2003). The ubiquitin/26S proteasome pathway, the complex last chapter in the life of many plant proteins. Trends Plant Sci 8, 135-142.
[20]	Vierstra RD ( 2012). The expanding universe of ubiquitin and ubiquitin-like modifiers. Plant Physiol 160, 2-14.
[21]	Voinnet O, Rivas S, Mestre P, Baulcombe D ( 2003). An enhanced transient expression system in plants based on suppression of gene silencing by the P19 protein of tomato bushy stunt virus. Plant J 33, 949-956.
[22]	Wroblewski T, Tomczak A, Michelmore R ( 2005). Optimization of Agrobacterium-mediated transient assays of gene expression in lettuce, tomato and Arabidopsis. Plant Biotechnol J 3, 259-273.
[23]	Xie Q, Guo HS, Dallman G, Fang S, Weissman AM, Chua NH ( 2002). SINAT5 promotes ubiquitin-related degradation of NAC1 to attenuate auxin signals. Nature 419, 167-170.
[24]	Yu JW, Rubio V, Lee NY, Bai S, Lee SY, Kim SS, Liu L, Zhang Y, Irigoyen ML, Sullivan JA, Zhang Y, Lee I, Xie Q, Paek NC, Deng XW ( 2008). COP1 and ELF3 control circadian function and photoperiodic flowering by regulating GI stability. Mol Cell 32, 617-630.
