植物基因选择性剪接: 断舍离合, 达权知变

郝雪峰, 毋张晶, 马甜, 金竹萍, 裴雁曦

Alternative Splicing of Plant Genes: Full of Change, Sail with Wind

Hao Xuefeng, Wu Zhangjing, Ma Tian, Jin Zhuping, Pei Yanxi

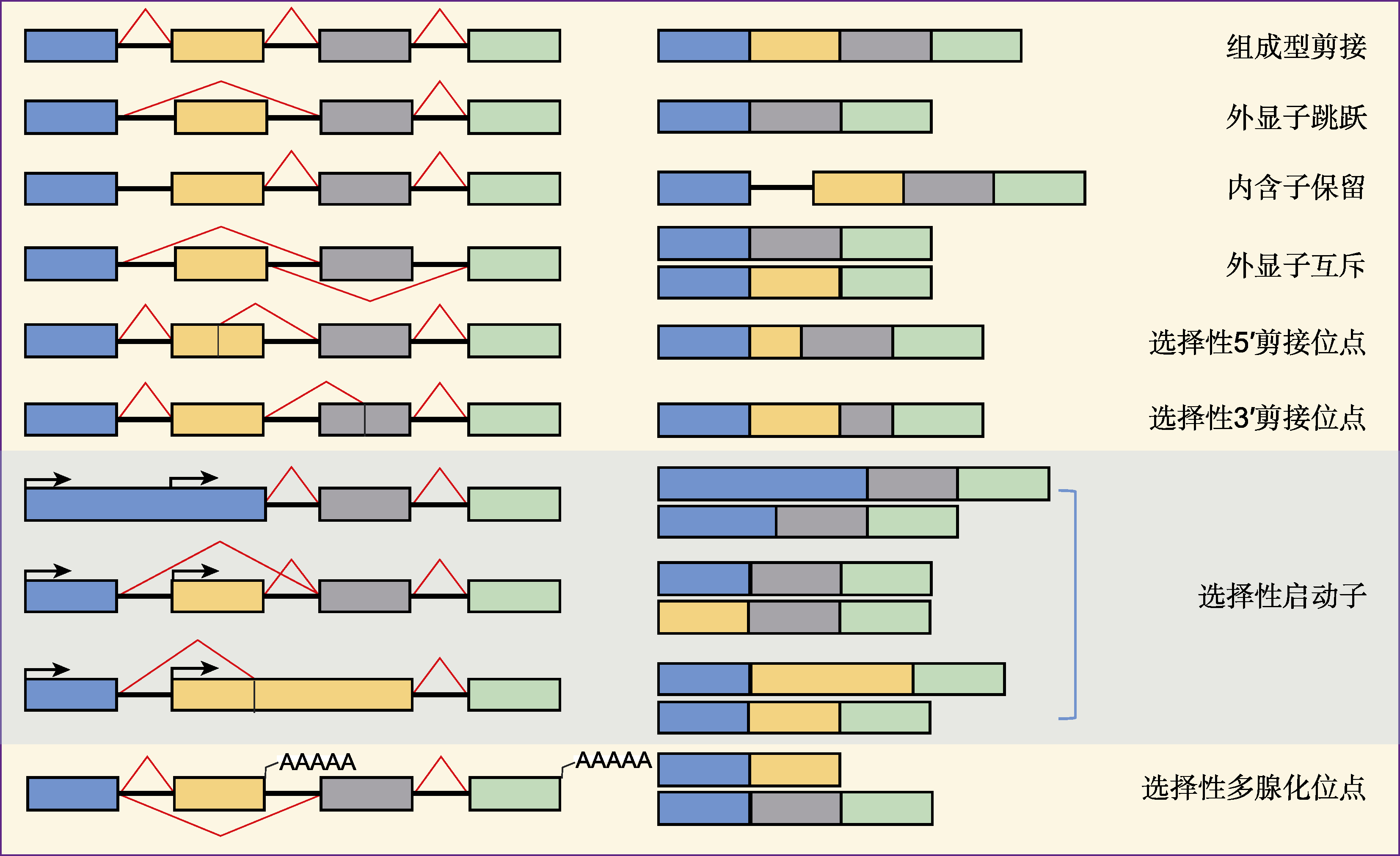

图2 基因选择性剪接的模式 不同颜色的方框表示不同外显子; 方框之间的黑色直线表示内含子; 红色折线表示内含子剪接部位; 黑色箭头表示启动子控制的转录起始位点。

Figure 2 Patterns of gene alternative splicing The different colored boxes depict different exons; the black lines between the boxes represent introns; the red polylines mark the point of splicing; the black bent arrows indicate the transcriptional starting sites driven by the promoter.
