植物学报 ›› 2017, Vol. 52 ›› Issue (5): 543-549.DOI: 10.11983/CBB16123
收稿日期:
2016-06-02
接受日期:
2016-09-04
出版日期:
2017-09-01
发布日期:
2017-07-10
通讯作者:
翟衡
基金资助:
Lulong Sun, Wei Song, Yuanpeng Du, Heng Zhai*
Received:
2016-06-02
Accepted:
2016-09-04
Online:
2017-09-01
Published:
2017-07-10
Contact:
Heng Zhai

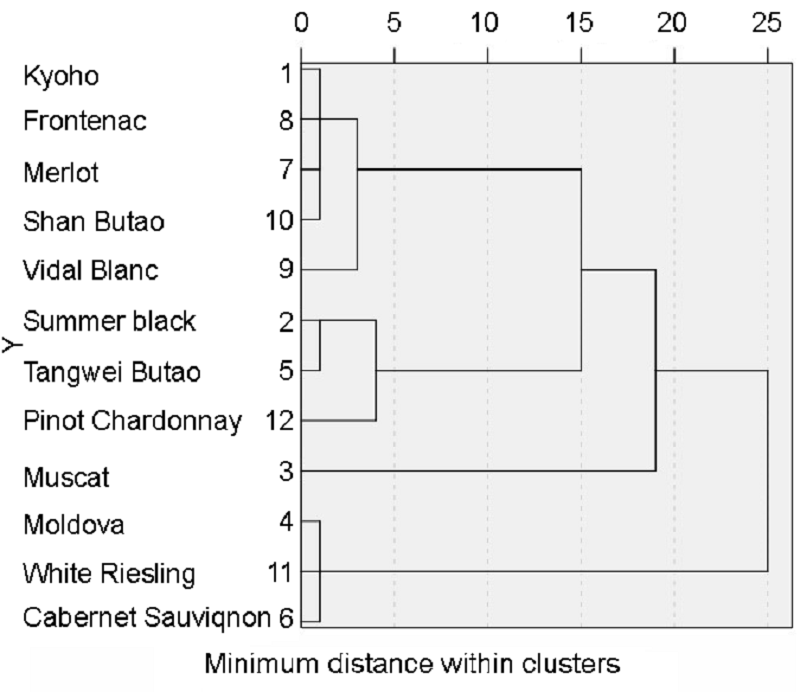

摘要: 以12个葡萄(Vitis vinifera)品种为试材, 在秋季采集叶片, 进行霜冻处理, 测定了霜冻过程中叶片光化学反射指数(PRI)的变化。提取有效参数, 采用隶属函数法比较了不同叶片的耐霜冻能力。结果表明, 随着温度的降低, 叶片光化学反射指数呈下降趋势。在-8-0°C范围内, PRI及其相对值Rt与温度都存在显著的线性关系; 叶片PRI在0°C、-8°C时的相对值R0、R-8, 以及-8-0°C范围中, Rt与温度的回归直线斜率SLP都具有品种特异性, 可以反映不同品种的耐霜冻能力。隶属函数法结合聚类分析结果显示, 在12个候选品种中, 抗霜冻能力最好的是Cabernet Sauvignon, 其R0、R-8和SLP分别为72.3%、50.19%和2.78。
孙鲁龙, 宋伟, 杜远鹏, 翟衡. 光化学反射指数在比较葡萄叶片耐霜冻能力中的应用. 植物学报, 2017, 52(5): 543-549.
Lulong Sun, Wei Song, Yuanpeng Du, Heng Zhai. Application of Photochemical Reflectance Index in Comparing Frost Resistance of Grapevine Cultivars. Chinese Bulletin of Botany, 2017, 52(5): 543-549.

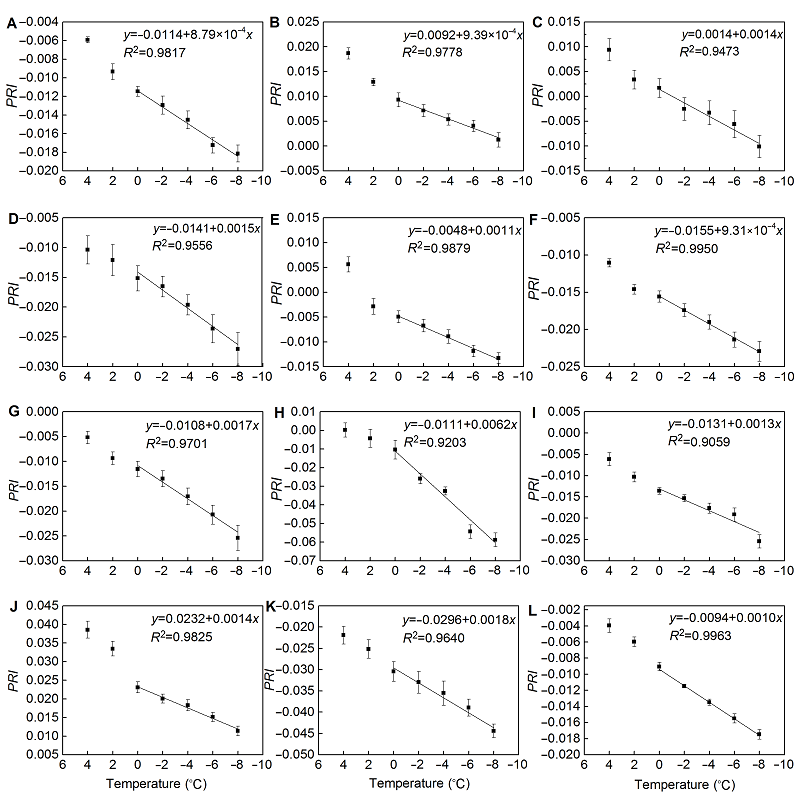

图1 不同葡萄品种叶片低温处理温度-PRI的关系(A)-(L) 分别为葡萄种质Kyoho、Summer black、Muscat、Moldova、Tangwei Butao、Cabernet Sauvignon、Merlot、Frontenac、Vidal Blanc、Shan Butao、White Riesling和Pinot Chardonnay, 图2同。采用-8-0°C之间的数据进行回归直线拟合, 显著水平为α=0.05。
Figure 1 Temperature-PRI relationships in leaves of different grapevine cultivars (A)-(L) Indicate grapevine cultivars Kyoho, Summer black, Muscat, Moldova, Tangwei Butao, Cabernet Sauvignon, Merlot, Frontenac, Vidal Blanc, Shan Butao, White Riesling and Pinot Chardonnay, respectively, the same as Figure 2. All regressions were conducted for the range of -8°C to 0°C and significant difference at 0.05 levels.

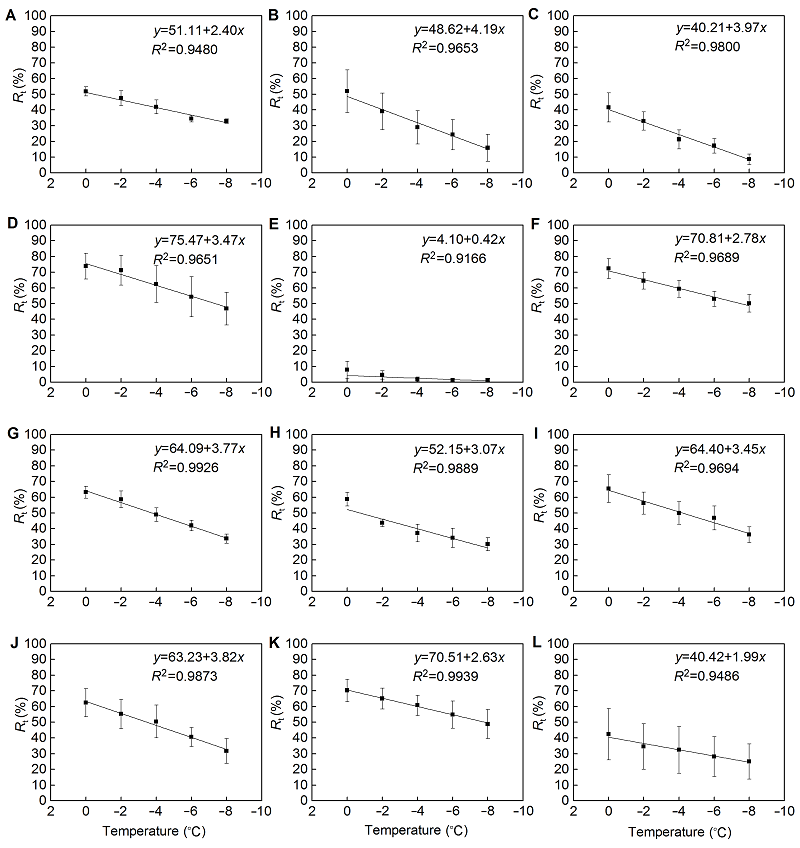

图2 不同葡萄品种叶片温度-Rt的关系(A)-(L)见图1。Rt (%)=PRIt/PRI4°C×100, t=0、-2、-4、-6、-8°C。采用-8-0°C之间的数据进行回归直线拟合, 显著水平为α=0.05。
Figure 2 Temperature-Rt relationships in different grapevine cultivars (A)-(L) See Figure 1. Rt (%)=PRIt/PRI4°C×100, t=0, -2, -4, -6, -8°C. All regressions were conducted for the range of -8°C to 0°C and significant difference at 0.05 levels.
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
R0 | ||||||||||||
1. Kyoho | ||||||||||||
2. Summer black | * | |||||||||||
3. Muscat | * | * | ||||||||||
4. Moldova | * | * | * | |||||||||
5. Tangwei Butao | * | * | * | * | ||||||||
6. Cabernet Sauvignon | * | * | * | * | * | |||||||
7. Merlot | * | * | * | * | * | * | ||||||
8. Frontenac | * | * | * | * | * | * | * | |||||
9. Vidal Blanc | * | * | * | * | * | * | * | * | ||||
10. Shan Butao | * | * | * | * | * | * | * | * | * | |||
11. White Riesling | * | * | * | * | * | * | * | * | * | * | ||
12. Pinot Chardonnay | * | * | * | * | * | * | * | * | * | * | * | |
R-8 | ||||||||||||
1. Kyoho | ||||||||||||
2. Summer black | * | |||||||||||
3. Muscat | * | * | ||||||||||
4. Moldova | * | * | * | |||||||||
5. Tangwei Butao | * | * | * | * | ||||||||
6. Cabernet Sauvignon | * | * | * | * | * | |||||||
7. Merlot | * | * | * | * | * | * | ||||||
8. Frontenac | * | * | * | * | * | * | * | |||||
9. Vidal Blanc | * | * | * | * | * | * | * | * | ||||
10. Shan Butao | * | * | * | * | * | * | * | * | * | |||
11. White Riesling | * | * | * | * | * | * | * | * | * | * | ||
12. Pinot Chardonnay | * | * | * | * | * | * | * | * | * | * | * | |
1/SLP | ||||||||||||
1. Kyoho | ||||||||||||
2. Summer black | * | |||||||||||
3. Muscat | * | n | ||||||||||
4. Moldova | * | * | * | |||||||||
5. Tangwei Butao | * | * | * | * | ||||||||
6. Cabernet Sauvignon | * | * | * | * | * | |||||||
7. Merlot | * | * | n | * | * | * | ||||||
8. Frontenac | * | * | * | * | * | * | * | |||||
9. Vidal Blanc | * | * | * | n | * | * | * | * | ||||
10. Shan Butao | * | * | n | * | * | * | n | * | * | |||
11. White Riesling | * | * | * | * | * | * | * | * | * | * | ||
12. Pinot Chardonnay | * | * | * | * | * | * | * | * | * | * | * |
表1 12个葡萄品种叶片R0、R-8和1/SLP比较
Table 1 Comparison of R0, R-8, 1/SLP among 12 grapevine cultivar leaves
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
R0 | ||||||||||||
1. Kyoho | ||||||||||||
2. Summer black | * | |||||||||||
3. Muscat | * | * | ||||||||||
4. Moldova | * | * | * | |||||||||
5. Tangwei Butao | * | * | * | * | ||||||||
6. Cabernet Sauvignon | * | * | * | * | * | |||||||
7. Merlot | * | * | * | * | * | * | ||||||
8. Frontenac | * | * | * | * | * | * | * | |||||
9. Vidal Blanc | * | * | * | * | * | * | * | * | ||||
10. Shan Butao | * | * | * | * | * | * | * | * | * | |||
11. White Riesling | * | * | * | * | * | * | * | * | * | * | ||
12. Pinot Chardonnay | * | * | * | * | * | * | * | * | * | * | * | |
R-8 | ||||||||||||
1. Kyoho | ||||||||||||
2. Summer black | * | |||||||||||
3. Muscat | * | * | ||||||||||
4. Moldova | * | * | * | |||||||||
5. Tangwei Butao | * | * | * | * | ||||||||
6. Cabernet Sauvignon | * | * | * | * | * | |||||||
7. Merlot | * | * | * | * | * | * | ||||||
8. Frontenac | * | * | * | * | * | * | * | |||||
9. Vidal Blanc | * | * | * | * | * | * | * | * | ||||
10. Shan Butao | * | * | * | * | * | * | * | * | * | |||
11. White Riesling | * | * | * | * | * | * | * | * | * | * | ||
12. Pinot Chardonnay | * | * | * | * | * | * | * | * | * | * | * | |
1/SLP | ||||||||||||
1. Kyoho | ||||||||||||
2. Summer black | * | |||||||||||
3. Muscat | * | n | ||||||||||
4. Moldova | * | * | * | |||||||||
5. Tangwei Butao | * | * | * | * | ||||||||
6. Cabernet Sauvignon | * | * | * | * | * | |||||||
7. Merlot | * | * | n | * | * | * | ||||||
8. Frontenac | * | * | * | * | * | * | * | |||||
9. Vidal Blanc | * | * | * | n | * | * | * | * | ||||
10. Shan Butao | * | * | n | * | * | * | n | * | * | |||
11. White Riesling | * | * | * | * | * | * | * | * | * | * | ||
12. Pinot Chardonnay | * | * | * | * | * | * | * | * | * | * | * |
Cultivar | R0 | R-8 | 1/SLP | Means |
---|---|---|---|---|
Kyoho | 0.667 | 0.644 | 0.083 | 0.464 |
Summer black | 0.668 | 0.298 | 0 | 0.322 |
Muscat | 0.513 | 0.151 | 0.006 | 0.223 |
Moldova | 1 | 0.930 | 0.023 | 0.651 |
Tangwei Butao | 0 | 0 | 1 | 0.333 |
Cabernet Sauvignon | 0.977 | 1 | 0.057 | 0.678 |
Merlot | 0.839 | 0.661 | 0.012 | 0.504 |
Frontenac | 0.772 | 0.591 | 0.041 | 0.468 |
Vidal Blanc | 0.874 | 0.713 | 0.024 | 0.537 |
Shan Butao | 0.828 | 0.623 | 0.011 | 0.487 |
White Riesling | 0.946 | 0.973 | 0.066 | 0.662 |
Pinot Chardonnay | 0.525 | 0.486 | 0.123 | 0.378 |
表2 12个葡萄品种叶片的抗寒性隶属函数分析
Table 2 Affiliation function analysis of cold hardiness in lea- ves of 12 grapevine cultivars
Cultivar | R0 | R-8 | 1/SLP | Means |
---|---|---|---|---|
Kyoho | 0.667 | 0.644 | 0.083 | 0.464 |
Summer black | 0.668 | 0.298 | 0 | 0.322 |
Muscat | 0.513 | 0.151 | 0.006 | 0.223 |
Moldova | 1 | 0.930 | 0.023 | 0.651 |
Tangwei Butao | 0 | 0 | 1 | 0.333 |
Cabernet Sauvignon | 0.977 | 1 | 0.057 | 0.678 |
Merlot | 0.839 | 0.661 | 0.012 | 0.504 |
Frontenac | 0.772 | 0.591 | 0.041 | 0.468 |
Vidal Blanc | 0.874 | 0.713 | 0.024 | 0.537 |
Shan Butao | 0.828 | 0.623 | 0.011 | 0.487 |
White Riesling | 0.946 | 0.973 | 0.066 | 0.662 |
Pinot Chardonnay | 0.525 | 0.486 | 0.123 | 0.378 |
[1] | 白金风, 公芙萍, 李春华, 武峰梅, 赵贵报 (2015). 侯马市近30年霜及霜冻的气候特征分析. 中国农学通报 31(2), 257-261. |
[2] | 高振 (2014). 基于温度-伤害度关系分析葡萄抗寒性及其影响因素. 硕士论文. 泰安: 山东农业大学. pp. 19-20. |
[3] | 潘淑坤, 张明军, 汪宝龙, 马雪宁 (2013). 1960-2011年新疆初终霜日及无霜期的变化特征. 干旱区研究 30, 735-742. |
[4] | 张磊, 王静, 张晓煜, 卫建国, 段晓凤, 李红英, 肖艳红 (2014). 近50a宁夏初、终霜日基本特征及变化趋势. 干旱区研究 31, 1039-1045. |
[5] | Allen DJ, Ort DR (2001). Impacts of chilling temperatures on photosynthesis in warm-climate plants.Trends Plant Sci 6, 36-42. |
[6] | Ferguson JC, Tarara JM, Mills LJ, Grove GG, Keller M (2011). Dynamic thermal time model of cold hardiness for dormant grapevine buds.Ann Bot 107, 389-396. |
[7] | Fuller MP, Telli G (1999). An investigation of the frost hardiness of grapevine (Vitis vinifera) during bud break.Ann Appl Biol 135, 589-595. |
[8] | Gu SL (1999). Lethal temperature coefficient—a new parameter for interpretation of cold hardiness.J Hortic Sci Biotechnol 74, 53-59. |
[9] | Kovács LG, Byers PL, Kaps ML, Saenz J (2003). Dormancy, cold hardiness, and spring frost hazard in Vitis amurensis hybrids under continental climatic conditions.Am J Enol Viticult 54, 8-14. |
[10] | Maughan TL, Black BL, Drost D (2015). Critical temperature for sub-lethal cold injury of strawberry leaves.Sci Hortic 183, 8-12. |
[11] | Nakaji T, Oguma H, Fujinuma Y (2006). Seasonal changes in the relationship between photochemical reflectance in- dex and photosynthetic light use efficiency of Japanese larch needles.Int J Remote Sens 27, 493-509. |
[12] | Neuner G, Erler A, Ladinig U, Hacker J, Wagner J (2013). Frost resistance of reproductive tissues during various sta- ges of development in high mountain plants.Physiol Plant- arum 147, 88-100. |
[13] | Sun LL, Song W, Geng QW, Du YP, Zhai H, Qin WS (2016). Comparison of cold hardiness in the leaves of various grape cultivars based on photochemical reflectance index.Vitis J Grapevine Res 55, 107-112. |
[14] | Wample RL, Bary A (1992). Harvest date as a factor in carbohydrate storage and cold hardiness of Cabernet Sauvignon grapevines.J Am Soc Hortic Sci 117, 32-36. |
[15] | Wample RL, Spayd SE, Evans RG, Stevens RG (1993). Nitrogen fertilization of White Riesling grapes in Was- hington: nitrogen seasonal effects on bud cold hardiness and carbohydrate reserves.Am J Enol Viticult 44, 159-167. |
[16] | Wolf TK, Cook MK (1994). Cold hardiness of dormant buds of grape cultivars: comparison of thermal analysis and field survival.HortScience 29, 1453-1455. |
[17] | Wu CY, Niu Z, Tang Q, Huang WJ (2010). Revised photochemical reflectance index (PRI) for predicting light use efficiency of wheat in a growth cycle: validation and com- parison.Int J Remote Sens 31, 2911-2924. |
