植物学报 ›› 2016, Vol. 51 ›› Issue (5): 667-678.doi: 10.11983/CBB15190

• 技术方法 • 上一篇    下一篇

叶绿素的快速提取与精密测定

邱念伟1,, 王修顺1,, 杨发斌1, 杨晓刚1, 杨文1, 刁润洁1, 王秀1, 崔静1, 周峰2,*()

  1. 1曲阜师范大学生命科学学院, 曲阜 273165
    2南京晓庄学院生物化工与环境工程学院, 南京 211171
  • 收稿日期:2015-10-23 接受日期:2016-02-27 出版日期:2016-09-01 发布日期:2016-09-27
  • 通讯作者: 邱念伟,王修顺,周峰 E-mail:zfibcas@163.com
  • 作者简介:

    # 共同第一作者

  • 基金资助:
    山东省自然科学基金(No.ZR2015DL009)、曲阜师范大学精品实验项目(No.JP2014006, No.SJ201409)和曲阜师范大学科技计划(No.XKJ201404)

Fast Extraction and Precise Determination of Chlorophyll

Nianwei Qiu1†, Xiushun Wang1†, Fabin Yang1, Xiaogang Yang1, Wen Yang1, Runjie Diao1, Xiu Wang1, Jing Cui1, Feng Zhou2*

  1. 1College of Life Sciences, Qufu Normal University, Qufu 273165, China
    2School of Biochemical and Environmental Engineering, Nanjing Xiaozhuang University, Nanjing 211171, China
  • Received:2015-10-23 Accepted:2016-02-27 Online:2016-09-01 Published:2016-09-27
  • Contact: Qiu Nianwei,Wang Xiushun,Zhou Feng E-mail:zfibcas@163.com
  • About author:

    # Co-first authors

摘要:

Arnon法是叶绿素提取和测定最经典、最常用的方法, 此法虽经多次改进, 但仍存在着检测波长误差大、计算公式有误、提取速度慢、测定结果不够准确以及操作步骤繁琐等缺陷。该文提出了二甲基亚砜(DMSO)高温提取、80%丙酮稀释的两步快速浸提法, 使叶绿素提取和测定过程缩短至3小时以内。通过对提取温度、提取时间、稀释比例及吸收光谱等进行系统分析, 筛选出了叶绿素的最佳提取条件和叶绿素含量的准确计算公式, 并用多种类型的植物材料验证了改进后的提取方法, 证明该方法具优越性和可靠性。具体测定方法是将植物材料切成1 mm宽的细丝或细段, 取50-100 mg材料于10 mL具塞试管中; 加入2 mL DMSO, 使植物材料浸没其中, 65°C高温避光提取至植物材料变白或透明; 冷却后加入8 mL 80%丙酮, 混匀, 测定663.6和646.6 nm处的吸光度。用公式计算叶绿素浓度: Ca (mg∙L-1)=12.27A663.6-2.52A646.6; Cb (mg∙L-1)=20.10A646.6-4.92A663.6; CT (mg∙L-1)=Ca+Cb=7.35A663.6+17.58A646.6

Abstract:

The Arnon method is the most classical and common method for extracting and determining chlorophyll. De- spite many improvements to this method, severe problems remain, such as inaccurate test wavelength, wrong content formula, low extraction speed, large errors in results, and tedious operation process. We present a fast two-step extraction and determination method for chlorophyll. The first step is extracting chlorophyll with dimethyl sulfoxide (DMSO) at high temperature, then diluting the chlorophyll solution with 80% acetone. Chlorophyll content determined by this method can be completed within 3 h. The optimal experimental conditions for extraction and the accurate formula for chlorophyll content were obtained by analyzing extraction temperature, extraction time, dilution ratio and absorption spectroscopy. The merits and reliability of this method were tested with some typical plant materials. The method is described as follows: Cut the plant material into a 1 mm wide filament or small pieces and place 50-100 mg plant material into a 10 mL gradu- ated test tube with a stopper. Then add 2 mL DMSO into the test tube and dip the plant material into DMSO. Place the tubes into a 65°C incubator away from the light until all plant material turns white or transparent. As the liquid cools, add 8 mL 80% (v/v) acetone to dilute DMSO, mix well, then determine absorbance at 663.6 and 646.6 nm by spectrophoto- metry. Chlorophyll concentration can be calculated with the following formulas: Ca (mg∙L-1)=12.27A663.6-2.52A646.6; Cb (mg∙L-1)=20.10A646.6-4.92A663.6; CT=Ca+Cb=7.35A663.6+17.58A646.6.

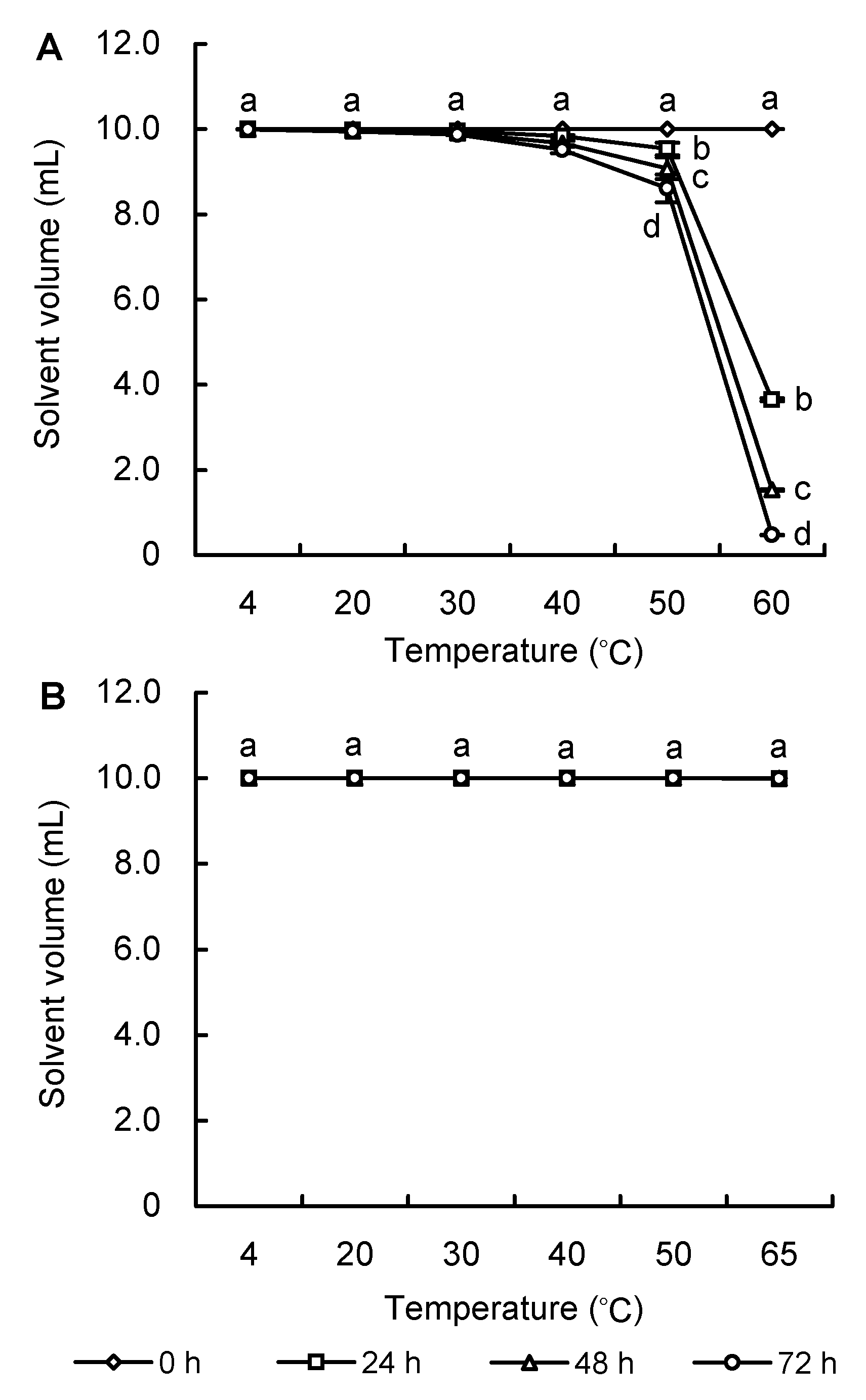

图1

80%丙酮(A)和DMSO (B)在不同提取温度下的挥发性 不同小写字母表示差异显著(P<0.05)。"

表1

80%丙酮或DMSO浸提法在不同温度下的提取时间(单位: 小时)"

Plant material 80% acetone DMSO
4°C 20°C 30°C 40°C 50°C 65°C
Spinach leaf 79.3±6.7 a 71.2±5.4 b 47.6±3.6 c 38.7±4.2 d 25.6±3.7 e 1.08±0.04 f
Wheat leaf 28.7±3.1 a 23.1±2.3 b 17.9±1.8 c 14.8±1.2 d 8.3±0.7 e 0.82±0.07 f
Chinese pine leaf 66.7±4.8 a 42.4±3.4 b 27.3±2.5 c 23.6±2.1 d 17.5±1.6 e 2.08±0.14 f

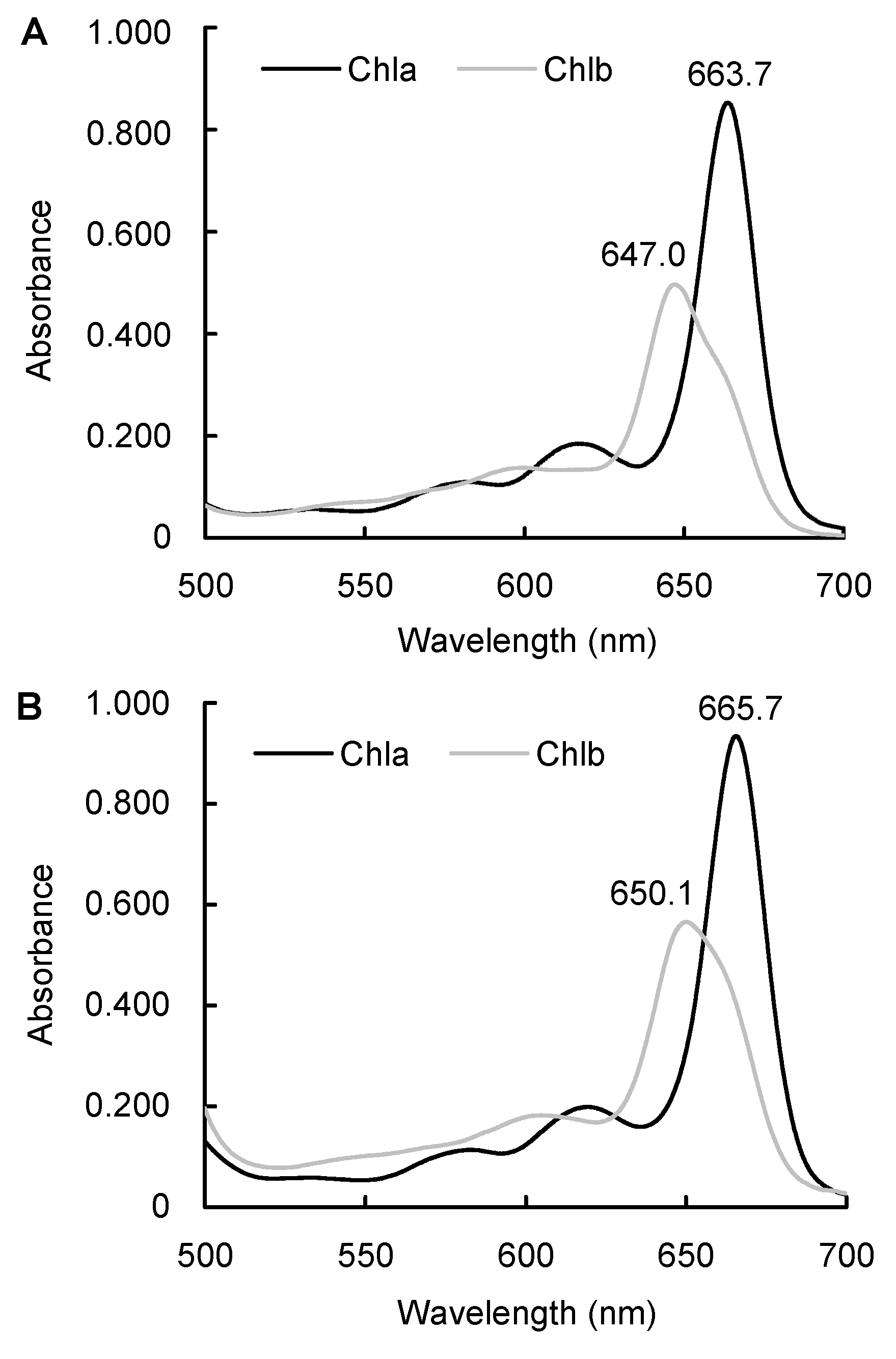

图2

叶绿素在80%丙酮(A)和DMSO (B)中的吸收光谱"

图2

叶绿素在80%丙酮(A)和DMSO (B)中的吸收光谱"

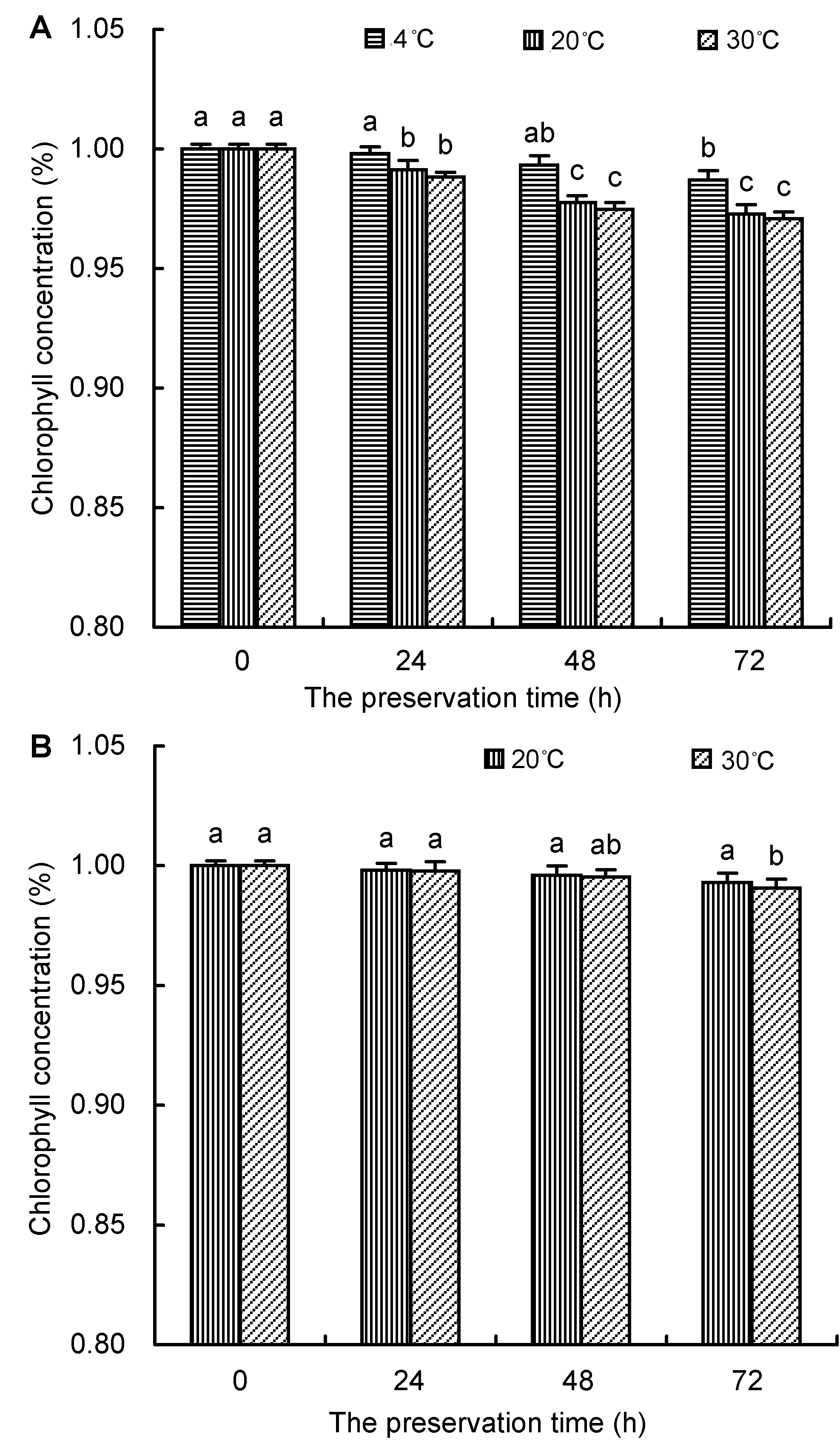

图3

叶绿素在80%丙酮(A)和DMSO (B)中的稳定性 不同小写字母表示差异显著(P<0.05)。"

表2

叶绿素在80%丙酮与DMSO混合液中的吸收峰(平均值±标准差)"

DMSO:80% acetone (v/v)
0:5 1:4 1:1
Wavelength of Chla (nm) 663.7±0.03 (663.3-664.1) 663.2±0.03 (663.0-663.4) 663.9±0.05 (663.6-664.2)
Wavelength of Chlb (nm) 647.0±0.04 (646.6-647.4) 646.8±0.02 (646.4-647.2) 647.8±0.04 (647.5-651.1)

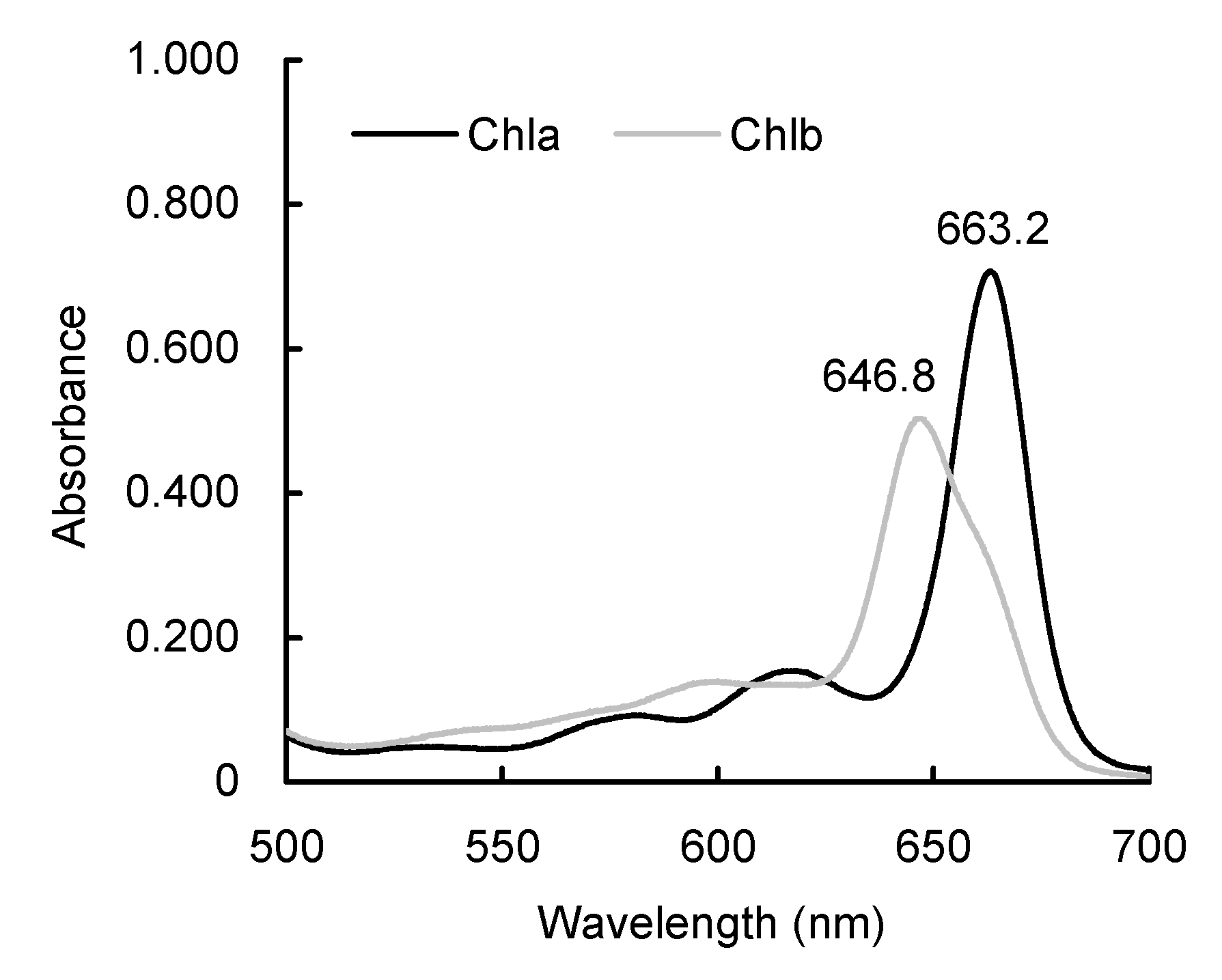

图4

色谱纯叶绿素在DMSO:80%丙酮=1:4 (v/v)混合溶剂中的吸收光谱"

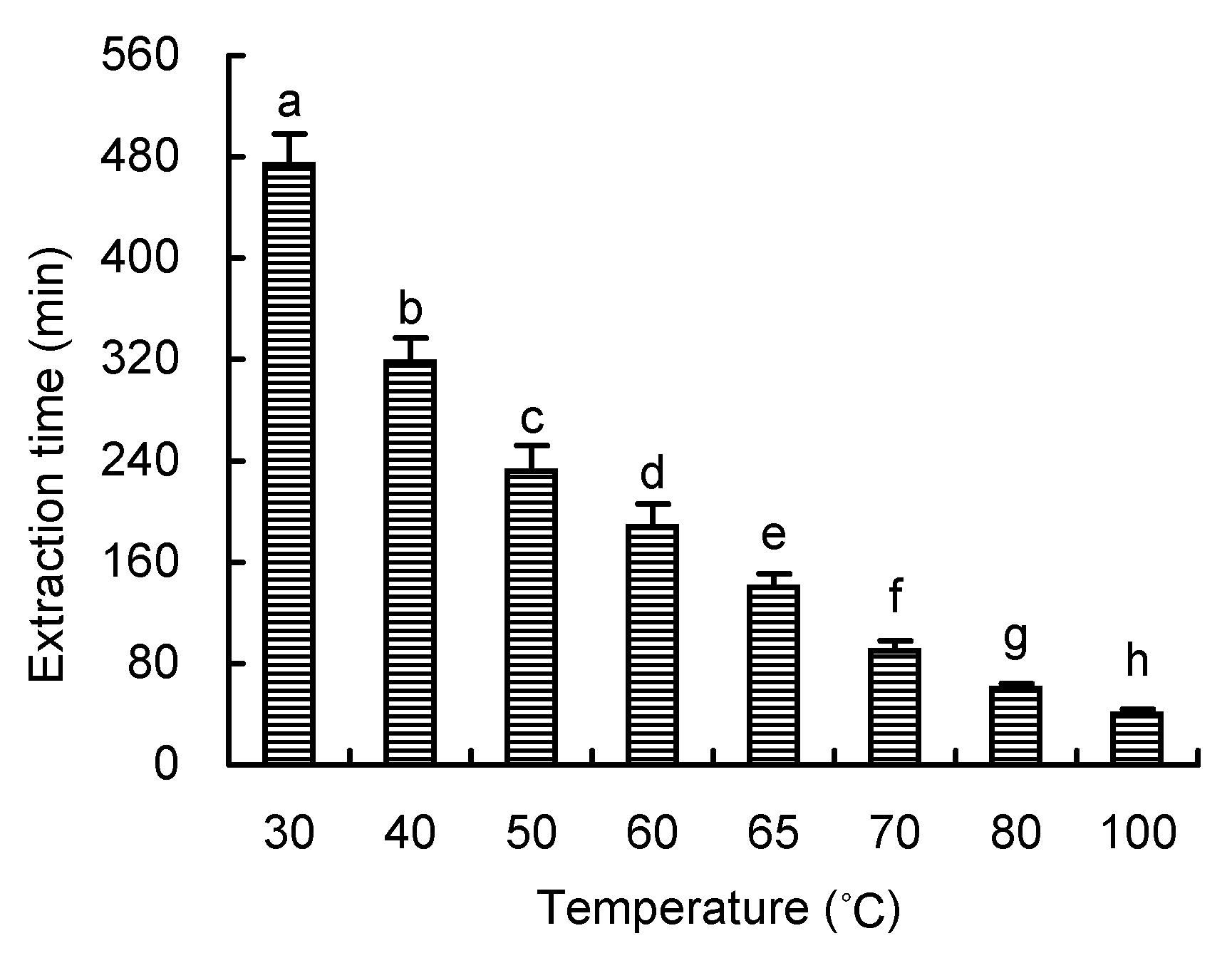

图5

不同温度下DMSO浸提菠菜叶绿素所需时间 不同小写字母表示差异显著(P<0.05)。"

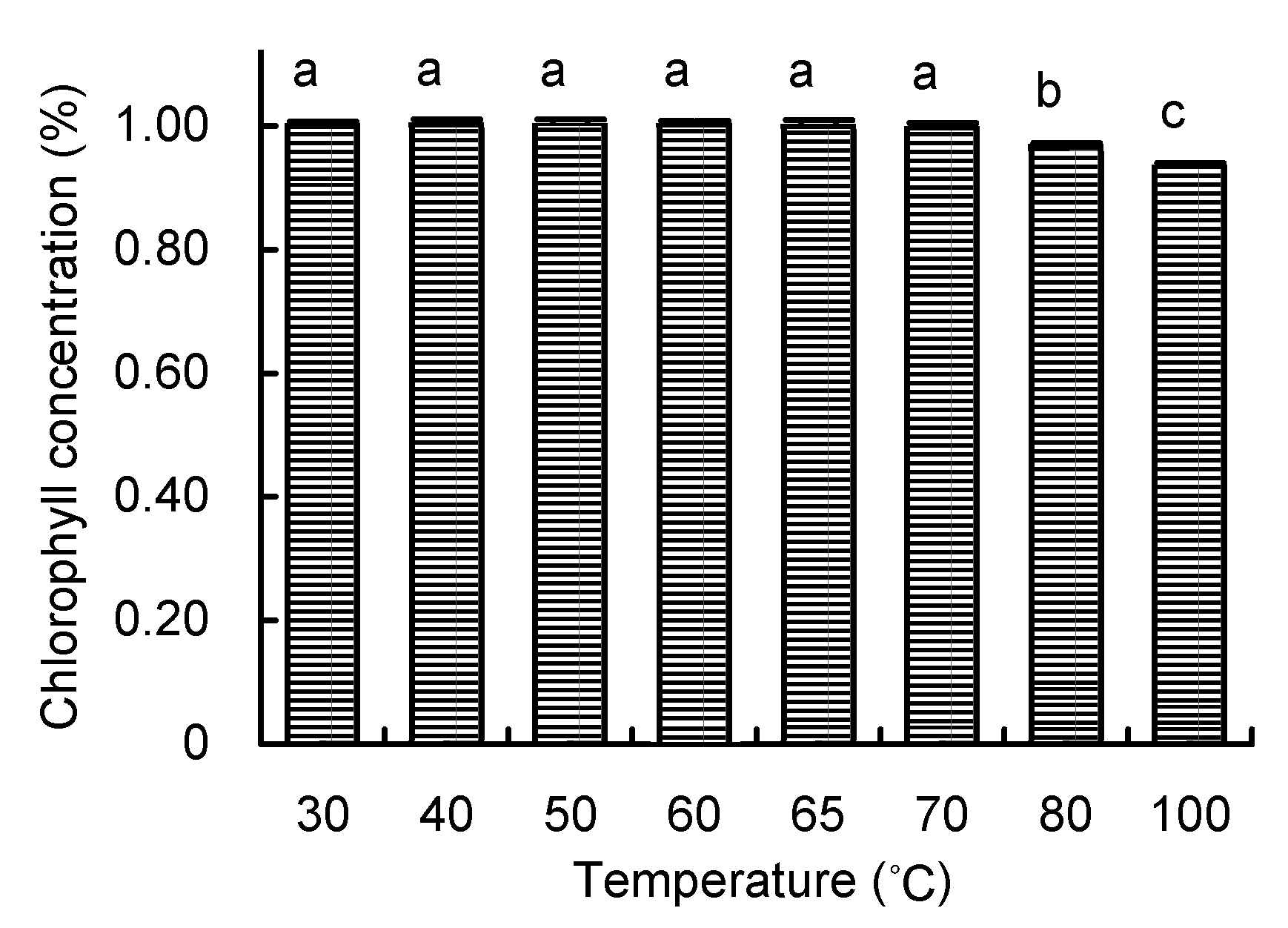

图6

不同温度下DMSO溶液中叶绿素的降解 不同小写字母表示差异显著(P<0.05)。"

表3

叶绿素在2种溶剂中吸收峰波长处吸光度的比较"

Chla solution Chlb solution
663.2 nm 663.6 nm 663.7 nm 646.6 nm 646.8 nm 647.0 nm
80% acetone 0.852 0.853 0.853 0.498 0.498 0.498
1:4 miscible solvent 0.853 0.852 0.852 0.501 0.501 0.501

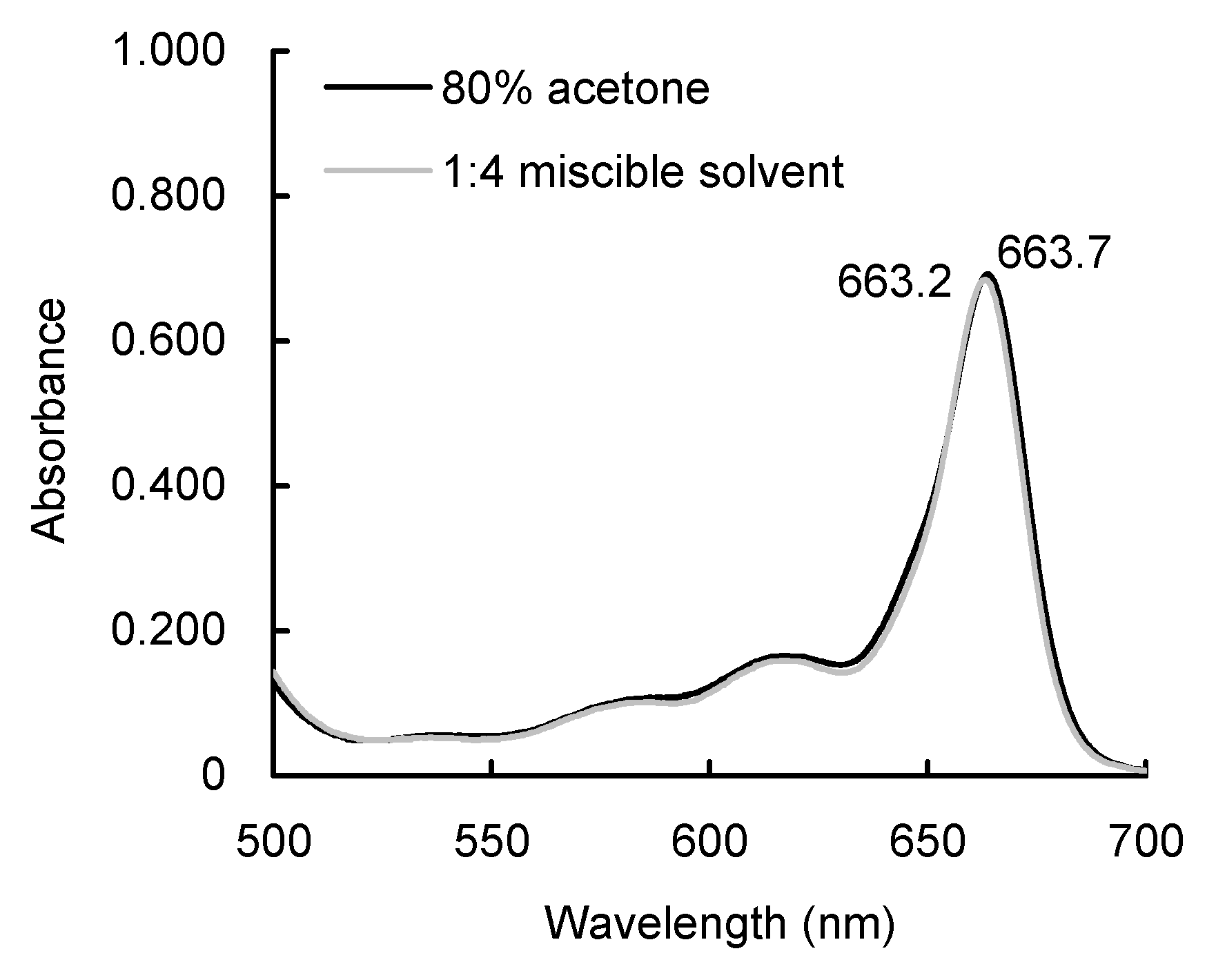

图7

叶绿素(Ca/Cb=3:1)混合溶液在80%丙酮和DMSO:80%丙酮=1:4 (v/v)混合溶剂中的吸收光谱"

表4

叶绿素浓度计算公式(A)及计算结果的比较(B) (平均值±标准差)"

(A)
No. Formulas References
1 Ca (mg·L-1)=12.7A 663-2.69A645; Cb (mg·L-1)=22.9A645-4.68A663 Arnon, 1949
2 Ca (mg·L-1)=12.72A663-2.59A645; Cb (mg·L-1)=22.88A645-4.67A663 陈毓荃, 1986
3 Ca (mg·L-1)=12.63A664.5-2.52A647; Cb (mg·L-1)=20.47A647-4.73A664.5 Inskeep and Bloom, 1985
4 Ca (mg·L-1)=12.21A663-2.81A646; Cb (mg·L-1)=20.13A646-5.03A663 Wellburn and Lichtenthaler, 1984
5 Ca (mg·L-1)=12.25A663.2-2.79A646.8; Cb (mg·L-1)=21.50A646.8-5.10A663.2 Lichtenthaler, 1987
6 Ca (mg·L-1)=12.25A663.6-2.55A646.6; Cb (mg·L-1)=20.31A646.6-4.91A663.6 Porra et al., 1989
7 Ca (mg·L-1)=12.27A663.6-2.52A646.6; Cb (mg·L-1)=20.10A646.6-4.92A663.6
(correction formula of DMSO:80% acetone=1:4 (v/v) mixed solvent)
-
(B)
Wavelength (nm) Absorbance and concentration in 80% acetone Absorbance and concentration in DMSO:80%
acetone=1:4 (v/v) mixed solvent
663.0 0.6710±0.0017 0.6724±0.0028
663.2 0.6716±0.0013 0.6732±0.0028
663.6 0.6734±0.0017 0.6721±0.0024
664.5 0.6698±0.0026 0.6673±0.0035
645.0 0.2626±0.0019 0.2658±0.0016
646.0 0.2768±0.0013 0.2804±0.0019
646.6 0.2869±0.0014 0.2899±0.0015
646.8 0.2886±0.0017 0.2918±0.0016
647.0 0.2918±0.0014 0.2952±0.0018
No. Ca (mg·L-1) Cb (mg·L-1) CT (mg·L-1) Ca/Cb Ca (mg·L-1) Cb (mg·L-1) CT (mg·L-1) Ca/Cb
1 7.82 2.87 10.69 2.72 7.82 2.94 10.76 2.66
2 7.85 2.87 10.73 2.73 7.86 2.94 10.81 2.67
3 7.72 2.80 10.53 2.75 7.68 2.89 10.57 2.66
4 7.42 2.20 9.61 3.38 7.42 2.26 9.68 3.28
5 7.42 2.78 10.20 2.67 7.43 2.84 10.27 2.62
6 7.52 2.52 10.04 2.98 7.49 2.59 10.08 2.90
7 - - - - 7.52 2.50 10.02 3.00

表5

3种方法提取测定叶绿素浓度及Ca/Cb的比较(平均值±标准差)"

Methods Extracted by 80% acetone Fast two-step extraction Grinding with 80% acetone
CT Ca/Cb CT Ca/Cb CT Ca/Cb
Spinach leaf 8.60±0.22 a 3.19±0.07 a 8.50±0.24 a 3.28±0.10 a 8.48±0.41 a 3.12±0.11 a
Rape leaf 3.61±0.23 a 2.74±0.11 a 3.67±0.21 a 2.72±0.12 a 3.55±0.36 a 2.71±0.14 a
Poplar leaf 5.88±0.29 b 3.57±0.10 a 7.27±0.19 a 3.50±0.08 a 7.24±0.44 a 3.51±0.15 a
Chinese pine leaf 1.19±0.04 b 3.13±0.06 a 1.33±0.07 a 3.17±0.06 a 1.27±0.11 a 3.19±0.09 a
1 苍晶, 赵会杰 (2013). 植物生理学实验教程. 北京: 高等教育出版社. pp. 57-60.
2 陈德海, 徐虹, 连玉武 (2005). 现代植物生物学实验. 北京: 科学出版社. pp. 130-131.
3 陈毓荃 (1986). 关于叶绿素的定量测定(分光光度法)中计算系数的修改意见. 西北农业大学学报 14, 84-85.
4 段光明 (1992). 叶绿素含量测定中Arnon公式的推导. 植物生理学通讯 28, 221-222.
5 高俊凤 (2006). 植物生理学实验指导. 北京: 高等教育出版社. pp. 74-77.
6 郝建军, 康宗利, 于洋 (2007). 植物生理学实验技术. 北京: 化学工业出版社. pp. 68-72.
7 郝再彬, 苍晶, 徐仲 (2004). 植物生理学实验. 哈尔滨: 哈尔滨工业大学出版社. pp. 46-49.
8 侯福林 (2010). 植物生理学实验教程(第2版). 北京: 科学出版社. pp. 61-63.
9 胡文玉, 王兴理, 玄英淑 (1984). 二甲基亚砜法测定叶绿素含量. 辽宁农业科学 1, 38-41.
10 李合生 (2000). 植物生理生化实验原理与技术. 北京: 高等教育出版社. pp. 134-137.
11 舒展, 张晓素, 陈娟, 陈根云, 许大全 (2010). 叶绿素含量测定的简化. 植物生理学通讯 46, 399-402.
12 苏正淑, 张宪政 (1989). 几种测定植物叶绿素含量的方法比较. 植物生理学通讯 25(7), 77-78.
13 谭桂英, 周百成 (1987). 底栖绿藻叶绿素的二甲基亚砜提取和测定法. 海洋与湖沼 18, 295-300.
14 王文杰, 贺海升, 关宇, 李文馨, 张衷华, 祖元刚 (2009). 丙酮和二甲基亚砜法测定植物叶绿素和类胡萝卜素的方法学比较. 植物研究 29, 224-229.
15 王英典, 刘宁 (2001). 植物生理学实验指导. 北京: 高等教育出版社. pp. 54-58.
16 许大全 (2009). 叶绿素含量的测定及其应用中的几个问题. 植物生理学通讯 45, 896-898.
17 张其德 (1985). 测定叶绿素的几种方法. 植物学通报 3(5), 60-64.
18 张蜀秋, 李云 (2011). 植物生理学实验技术教程. 北京: 科学出版社. pp. 69-72.
19 张志良, 瞿伟菁 (2003). 植物生理学实验指导(第3版). 北京: 高等教育出版社. pp. 67-70.
20 邹琦 (2008). 植物生理学实验指导(第2版). 北京: 中国农业出版社. pp. 72-75.
21 Arnon DI (1949). Copper enzymes in isolated chloroplasts. Polyphenoloxidase in Beta vulgaris. Plant Physiol 24, 1-15.
22 Hiscox JD, Israesltam GF (1979). A method for extration of chlorophyll from leaf without maceration.Can J Bot 57, 1332-1334.
23 Inskeep WP, Bloom PR (1985). Extinction coefficients of chlorophyll a and b in N,N-Dimethylformamide and 80% acetone1.Plant Physiol 77, 483-485.
24 Lichtenthaler HK (1987). Chlorophylls and carotenoids: pigments of photosynthetic biomenbranes. Meth Enzymol 148, 350-382.
25 Mackinney G (1941). Absorption of light by chlorophyll solution.J Biol Chem 140, 315-322.
26 Porra RJ (2002). The chequered history of the development and use of simultaneous equations for the accurate determination of chlorophylls a and b.Photosyn Res 73, 149-156.
27 Porra RJ, Thompson WA, Kriedemann PE (1989). Deter- mination of accurate extinction coefficients and simultane- ous equations for assaying chlorophylls a and b extra- cted with four different solvents: verification of the con- centration of chlorophyll standards by atomic absorption spectrometry.Biochim Biophys Acta 975, 384-394.
28 Wellburn AR, Lichtenthaler HK (1984). Formulae and program to determine total carotenoids and chlorophylls a and b of leaf extracts in different solvents. Adv Photosyn Res 2, 9-12.
29 Wellburn AR (1994). The spectral determination of chlorophylls a and b, as well as total carotenoids, using various solvents with spectrophotometers of different resolution.J Plant Physiol 144, 307-313.
